Description

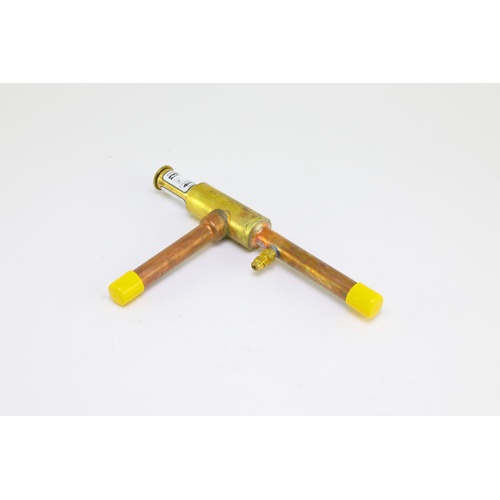

Parker-Sporlan ORIT-6 Evaporator Pressure Regulator — 901096P
The Parker-Sporlan ORIT-6 (901096P) is a reliable outlet (suction-side) evaporator pressure regulator engineered to maintain a minimum evaporator pressure in commercial refrigeration systems. By preventing the evaporator pressure from dropping below the set point, the ORIT-6 protects coils from frost buildup, guards against product freeze damage, and ensures consistent system performance across varying load conditions.
Key Features
- Pressure range: 0–50 psig — suitable for a wide range of medium- and low-temperature refrigeration applications
- Connection size: 5/8″ ODF sweat (solder) — easy integration into existing copper line sets
- Outlet (suction) pressure regulation — holds minimum evaporator pressure to protect coils and refrigerated product
- Compact, rugged construction from Parker-Sporlan — a trusted name in refrigeration flow controls
- Field-adjustable set point for precise pressure control
- Designed for use with common HFC and HCFC refrigerants
Typical Applications
- Supermarket and convenience store refrigerated display cases
- Walk-in coolers and freezers
- Multi-circuit refrigeration systems requiring individual evaporator pressure control
- Any application requiring minimum evaporator pressure protection
Specifications
- SKU: 901096P
- Model: ORIT-6
- Brand: Parker-Sporlan
- Pressure Range: 0–50 psig
- Connection: 5/8″ ODF (sweat)
- Regulator Type: Evaporator Pressure Regulator (EPR) / Outlet Pressure Regulator
