Description

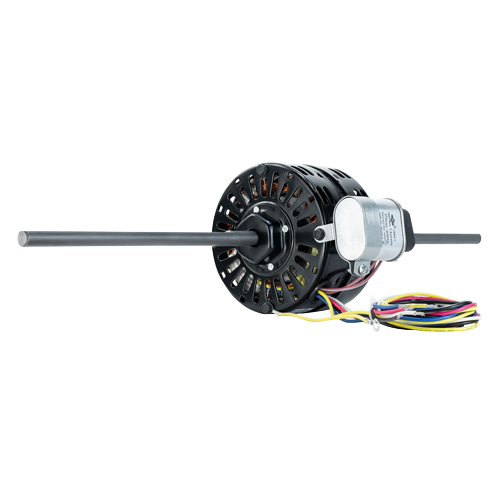

The PEMS D347P is a 1/8 HP, 115-volt, 1550 RPM, 4-speed permanent split capacitor (PSC) blower motor engineered for dependable performance in residential and light commercial HVAC air-handling applications. With four selectable speed taps, this motor provides the flexibility to match airflow output to the specific requirements of the system, making it an ideal direct replacement or upgrade for furnace air handlers, fan coil units, and multi-speed blower assemblies.
Key Specifications
- SKU: D347P
- Horsepower: 1/8 HP
- Voltage: 115V
- Speed: 1550 RPM
- Number of Speeds: 4
- Motor Type: PSC (Permanent Split Capacitor)
Features & Benefits
- Four speed taps allow precise airflow adjustment to meet system design requirements
- 115V single-phase power supply for compatibility with standard residential and light commercial electrical systems
- 1550 RPM operating speed optimized for efficient blower and fan coil applications
- Compact 1/8 HP rating suited for low-resistance air distribution systems
- PSC motor design provides smooth, quiet operation and improved energy efficiency over shaded-pole alternatives
- Built for long service life in demanding HVAC environments
Typical Applications
- Residential and light commercial furnace blower assemblies
- Fan coil units
- Multi-speed air handlers
- OEM replacement and aftermarket blower motor installations
