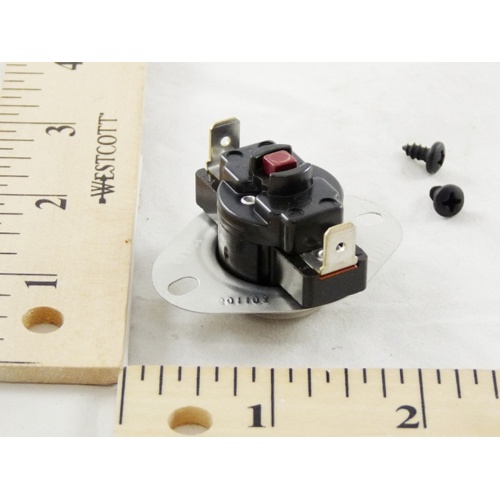

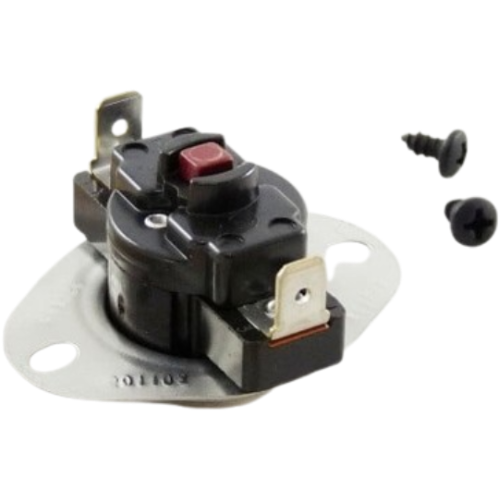

Raypak 006035F 300°F Manual Reset SPST Rollout Switch

Description

Raypak 006035F Rollout Switch Overview

The Raypak 006035F is an OEM rollout switch engineered to protect heating equipment from dangerous flame rollout conditions. When burner flames escape the combustion chamber and reach the switch, it trips at 300°F, immediately interrupting the circuit to shut down the burner and prevent heat exchanger damage, flue blockage escalation, or potential fire hazards.

Key Features

• Trip temperature: 300°F (149°C) for precise, reliable flame rollout detection
• Manual reset operation — requires technician intervention before restart, ensuring the root cause is identified and corrected
• SPST (Single-Pole, Single-Throw) switching configuration for straightforward circuit interruption
• OEM Raypak replacement part — direct-fit compatibility for applicable Raypak heating equipment
• Durable construction designed to withstand the thermal demands of commercial and residential boiler and heater environments

Application & Safety

Rollout switches are a critical line of defense in any gas-fired heating system. The manual reset design of the 006035F ensures that once a rollout event is detected, the system cannot be restarted without a deliberate reset by a qualified technician. This safeguard helps diagnose underlying issues such as blocked heat exchangers, restricted flue venting, or improper combustion airflow before returning the unit to service.

Specifications

• Brand: Raypak
• Part Number: 006035F
• Switch Type: Rollout Switch
• Trip Temperature: 300°F
• Reset Type: Manual Reset
• Switching Configuration: SPST (Single-Pole, Single-Throw)
