Raypak 008093F 200F Cutout Manual Reset Limit Switch

Description

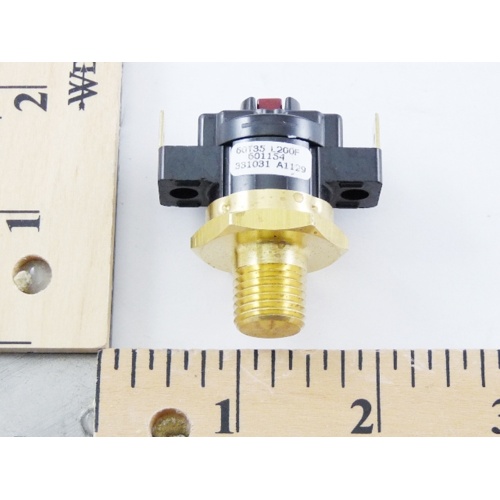

Raypak 008093F 200°F Cutout Manual Reset Limit Switch

The Raypak 008093F is a high-limit safety switch engineered to protect Raypak heating systems from dangerous overtemperature conditions. Featuring a 200°F cutout (CO) setpoint and a manual reset (M/R) mechanism, this limit switch interrupts the heating circuit when water or fluid temperatures exceed the rated threshold — requiring a deliberate manual reset before the system can resume operation. This design ensures that a technician inspects and resolves the root cause of overheating before the equipment is returned to service, making it an essential safeguard in boiler and pool/spa heater applications.

Key Features

• 200°F (93°C) cutout temperature setpoint
• Manual reset (M/R) operation — prevents automatic restart after a high-limit trip
• Direct OEM replacement for compatible Raypak heating equipment
• Interrupts burner/heating circuit on overtemperature condition
• Designed for reliable, long-service-life performance in demanding HVAC and hydronic applications
• Compact design for straightforward installation in existing control panels

Application

The 008093F limit switch is a genuine Raypak OEM component intended for use in Raypak boilers, pool heaters, and spa heaters. Always verify compatibility with your specific Raypak model before installation. For best results, installation should be performed by a qualified HVAC or plumbing technician in accordance with local codes and the equipment manufacturer’s guidelines.

Specifications

• SKU: 008093F
• Brand: Raypak
• Cutout Temperature: 200°F
• Reset Type: Manual Reset (M/R)
• Switch Type: High-Limit / Cutout (CO)
