Description

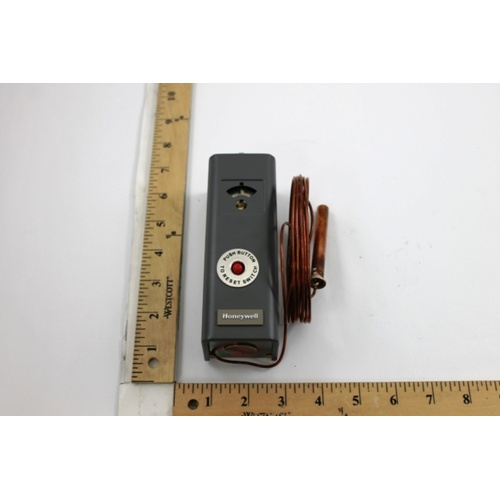

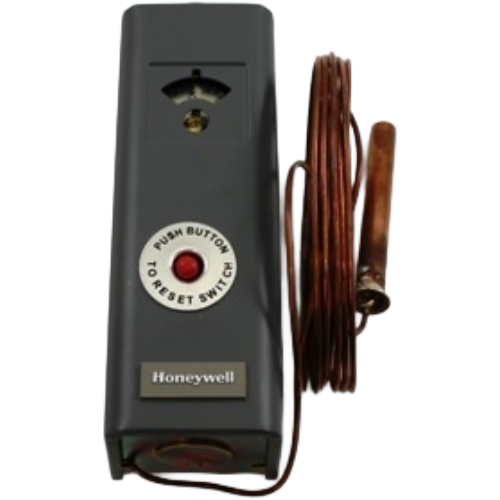

The Raypak 009554F is a manual reset (M/R) limit switch engineered to protect Raypak heating equipment from unsafe operating temperatures. Designed with a wide sensing range of 40°F to 180°F, this limit switch monitors system temperature and interrupts the control circuit when a high-limit condition is detected, requiring a manual reset before the equipment can resume normal operation — an important safety feature that prevents automatic restart after a fault.
Key Features
- Temperature sensing range: 40°F to 180°F
- Manual reset (M/R) operation for enhanced safety
- Designed as a genuine Raypak OEM replacement part
- Interrupts control circuit upon overtemperature detection
- Prevents automatic restart after a high-limit fault
- Direct replacement for compatible Raypak heating systems
Application
The 009554F limit switch is a direct OEM replacement component for Raypak pool heaters, boilers, and other hydronic heating equipment. When the system temperature exceeds the safe operating threshold, the limit switch opens the control circuit and locks out the burner until the fault is manually cleared by a qualified technician. This manual reset design ensures that the root cause of the overtemperature event is investigated and resolved before the unit is returned to service.
Why Choose OEM Raypak Parts?
- Guaranteed fit and compatibility with Raypak equipment
- Maintains original equipment performance and safety standards
- Supports warranty compliance on Raypak systems
- Reliable protection against thermal runaway and equipment damage
