Description

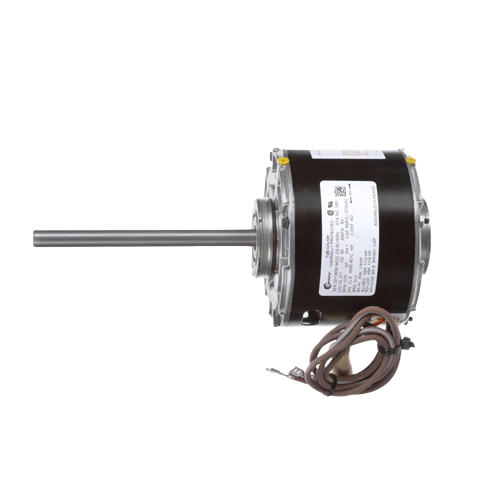

The Regal 595 permanent split capacitor motor is a versatile replacement motor for HVAC blower and light industrial applications. Delivering 1/8 to 1/14 HP at 1075 RPM with three-speed operation, this motor operates on 277 Vac single phase power for flexible performance. Built with a 42 NEMA frame and open air enclosure, it provides reliable airflow and efficient cooling. The sleeve bearing design and reversible rotation offer smooth operation and installation flexibility, while the 1/2″ x 6 1/2″ shaft accommodates standard mounting requirements.
Key Features:
-
1/8–1/14 HP permanent split capacitor motor for HVAC blower and light industrial applications
-
Operates on 277 Vac, single phase power
-
1075 RPM with 3-speed operation for flexible airflow control
-
Amperage ratings of 0.83, 0.59, and 0.49 amps for efficient operation
-
42 NEMA frame size for standard mounting compatibility
-
Open air enclosure for effective cooling
-
Sleeve bearing construction for smooth, quiet operation
-
1/2″ x 6 1/2″ shaft for secure, standard fit
-
Reversible rotation for flexible installation options
