Description

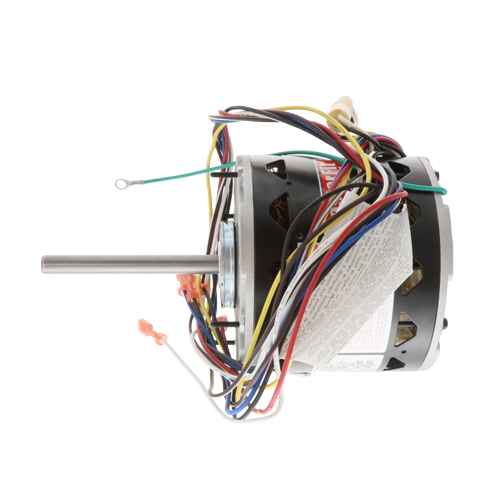

The Regal 7FD6001A permanent split capacitor motor is a versatile direct drive solution for fans and blowers in HVAC systems. Delivering 3/4 to 1/5 HP at 1075 RPM with four-speed control, this motor operates on 277 Vac single phase power for efficient performance. Its 48Y frame, open air over enclosure, and ball bearing construction provide durability and reliable airflow. The motor features a 1/2″ diameter shaft and resilient ring with extended studs for secure mounting, while reversible rotation adds flexibility for a variety of installations.
Key Features:
-
3/4–1/5 HP permanent split capacitor motor for HVAC fan and blower applications
-
Operates on 277 Vac, single phase power
-
1075 RPM performance with 4-speed control for flexible airflow
-
3.6 amp draw for efficient operation
-
48Y frame size for standard mounting compatibility
-
Open air over enclosure for effective cooling
-
Ball bearing construction for long-lasting, smooth operation
-
1/2″ diameter shaft for reliable coupling
-
Reversible rotation for flexible installation options
-
Resilient ring with extended studs for secure, vibration-reducing mounting
