Description

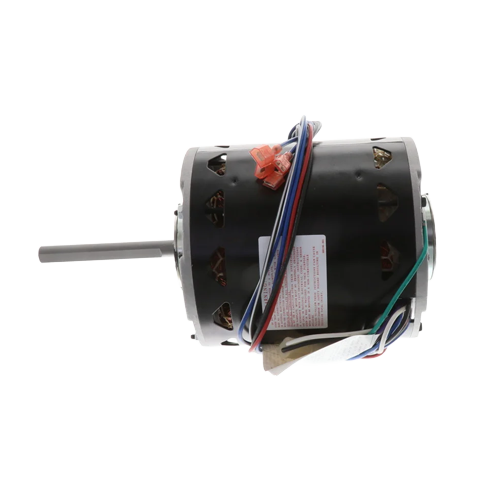

The Regal BDH1106 permanent split capacitor motor is built for reliable performance in demanding HVAC blower and air handling applications. Designed to operate on 460 Vac single phase power, this motor delivers smooth and efficient airflow with three-speed control. Its 48Y NEMA frame, open air enclosure, and resilient ball bearing construction support long service life, while the reversible rotation and extended shaft provide installation flexibility.
Key Features:
-
1 HP permanent split capacitor motor for HVAC blower and air handling applications
-
Operates on 460 Vac, single phase power
-
1100 RPM performance with 3 speed operation
-
3.2 amp draw for efficient high-voltage operation
-
48Y NEMA frame size for standard mounting compatibility
-
Open air enclosure for effective cooling
-
Ball bearing construction with resilient mounting for durability and reduced vibration
-
1/2″ x 6 1/2″ shaft for extended reach applications
-
Reversible rotation for flexible installation options
-
Designed for reliable, long-lasting service in demanding environments
