Description

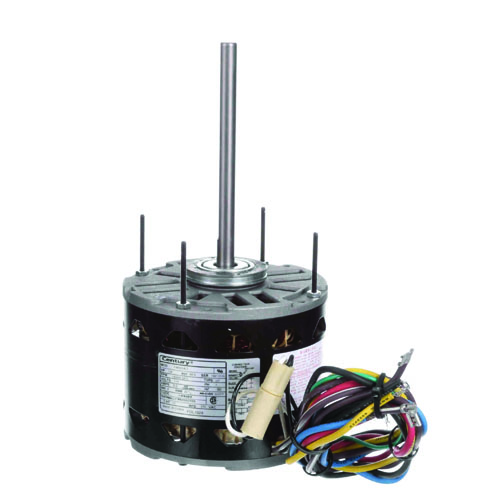

The Regal FDL1024 blower motor is a high-quality HVAC replacement motor designed for dependable airflow and long-lasting performance. This 1/4 horsepower motor operates on 115 Vac single phase power and delivers 1625 RPM with three selectable speeds to meet varying system demands. Built on a 48 frame with a 5 5/8 inch motor diameter, it features continuous air over cooling, sleeve bearings, and an automatic protector for added reliability. The included resilient mounting ring and reversible rotation make installation flexible across a wide range of blower applications.
Key Features:
-
1/4 HP blower motor for HVAC applications
-
Operates on 115 Vac single phase power
-
1625 RPM performance with 3 speed operation
-
3.0–5.0 amp current range
-
48 frame motor with 5 5/8 inch motor diameter
-
Sleeve bearing design for smooth operation
-
Continuous air over enclosure for effective cooling
-
Automatic protector for motor safety
-
Resilient mounting ring included for easy installation
-
Permanent split capacitor motor design
-
1/2 inch flatted shaft
-
Reversible rotation for versatile replacement use
