Regal RA1034 PSC Motor 1/3 HP 208‑230 V 1625 RPM 3‑Speed

Description

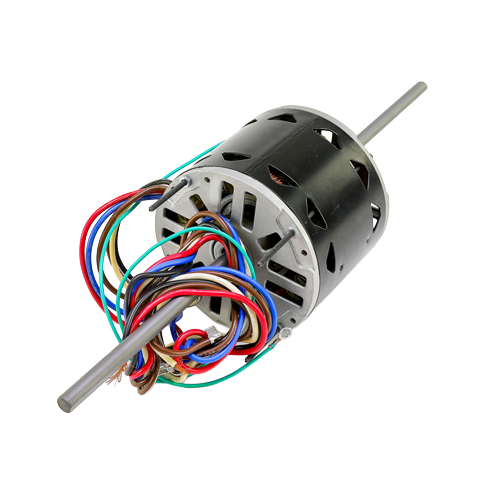

The Regal RA1034 permanent split capacitor (PSC) motor is engineered for reliable performance in HVAC blower, fan, and air-moving applications. With a 1/3 HP output and three selectable speeds at 1625 RPM, this motor delivers consistent airflow for residential and light commercial systems. Designed for 208-230 VAC single-phase operation, it features a 5 5/8" motor diameter, double shaft with a 1/2" diameter flatted shaft, and counter-clockwise lead end (CCWLE) rotation. The sleeve bearing construction, auto protector, and continuous air over design ensure quiet, long-lasting, and safe operation in a variety of HVAC setups.

Key Features:

• 1/3 HP motor output for efficient airflow

• Three-speed operation at 1625 RPM

• Compatible with 208-230 VAC single-phase power

• Permanent split capacitor (PSC) design for reliable performance

• 5 5/8" motor diameter with double shaft

• 1/2" diameter flatted shaft for secure mounting

• Counter-clockwise lead end (CCWLE) rotation

• Sleeve bearing and auto protector for quiet, safe, and durable operation

• Continuous air over design for effective cooling
