Description

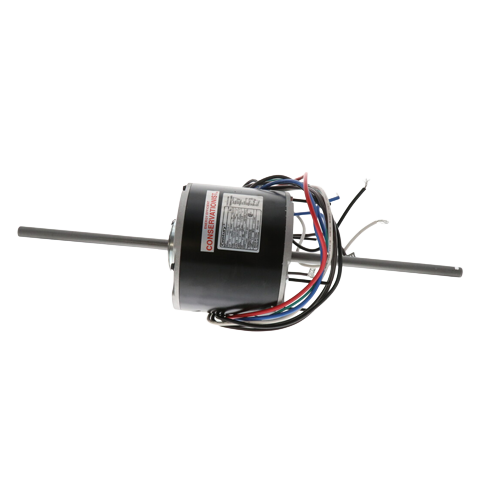

The Regal RA1036 permanent split capacitor (PSC) motor is engineered for dependable and adaptable performance in HVAC blower, fan, and air‑moving applications. With a 1/3 HP output and designed for 208‑230 VAC single‑phase electrical operation, this motor delivers reliable airflow at 1075 RPM across three selectable speeds. Its semi‑enclosed construction and sleeve bearing design provide quiet, long‑lasting operation in residential and light commercial systems. Featuring a 48Y NEMA frame and a robust shaft measuring 8 1/4″ long by 1/2″ diameter with 7 1/4″ usable length, along with counter‑clockwise (CCW) lead end rotation, the RA1036 motor offers flexible installation and dependable performance where adjustable airflow control is required.
Key Features:
-
1/3 HP motor output for efficient airflow
-
Designed for 208‑230 VAC single‑phase electrical operation
-
1075 RPM speed with 3‑speed selection
-
Permanent Split Capacitor (PSC) design for dependable performance
-
Semi‑enclosed construction for protection and durability
-
Sleeve bearing for quiet, long service life
-
48Y NEMA frame size
-
Extended shaft: 8 1/4″ total length × 1/2″ diameter (7 1/4″ usable) for versatile mounting
-
Counter‑clockwise (CCW) lead end rotation
