Description

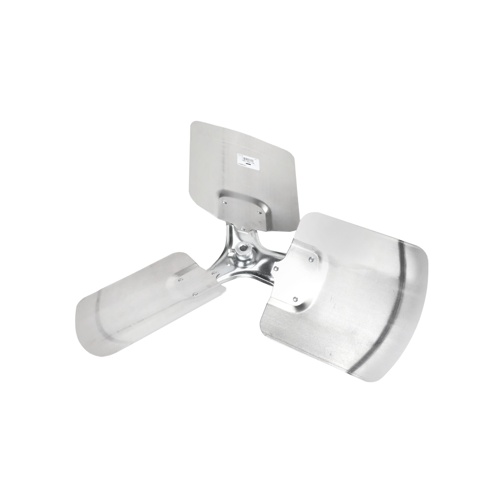

Revcor T2603-30RA-CTN 26″ 3-Blade Fan Blade Overview
The Revcor T2603-30RA-CTN is a heavy-duty 26-inch, 3-blade propeller fan blade engineered for dependable airflow performance in commercial and industrial HVAC applications. Designed with a 30-degree blade pitch and clockwise (CW) rotation, this fan blade delivers efficient air movement suited for condenser fans, cooling towers, and ventilation systems.
Key Features
- 26″ overall fan blade diameter for high-volume air delivery
- 3-blade propeller design optimized for balanced, efficient airflow
- 30-degree blade pitch for effective air displacement
- 1/2″ bore hub for secure motor shaft mounting
- Clockwise (CW) rotation as viewed from the air discharge side
- Durable construction built to withstand demanding HVAC operating environments
- Manufactured by Revcor, a trusted name in fan blade technology
Specifications
- SKU: T2603-30RA-CTN
- Brand: Revcor
- Blade Diameter: 26″
- Number of Blades: 3
- Blade Pitch: 30 Degrees
- Bore Size: 1/2″
- Rotation: Clockwise (CW)
Applications
- Air-cooled condensers
- Rooftop HVAC units
- Commercial ventilation systems
- Cooling towers and evaporative coolers
- Industrial fan assemblies
