Description

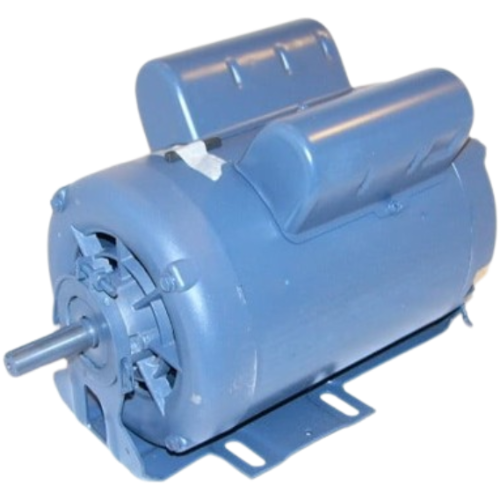

The Reznor 194202 is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for reliable performance in demanding HVAC and commercial heating applications. Built to Reznor’s exacting standards, this replacement motor delivers consistent airflow and long service life in unit heaters and related equipment.
Electrical Specifications
- Voltage: 115/208-230 VAC
- Phase: Single Phase
- Full Load Amps: 15.0 A (115V) / 7.8 A (208V) / 7.5 A (230V)
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1-1/2 HP
- Speed: 1725 RPM
- NEMA Frame Size: M56
- Shaft Size: 5/8″ diameter x 1-7/8″ length
- Rotation: Reversible
- Mounting: Resilient Base
Construction & Protection
- Enclosure: Open Drip Proof (ODP)
- Bearings: Ball Bearing for extended service life and reduced maintenance
Key Features & Benefits
- Reversible rotation provides installation flexibility
- Resilient base mount reduces vibration transmission and noise
- Ball bearings deliver superior durability and smooth operation
- Multi-voltage capability (115/208-230V) simplifies replacement across various electrical configurations
- ODP enclosure suitable for indoor applications with protection against dripping liquids
- PSC design offers energy-efficient, quiet operation with high starting torque
- Direct OEM replacement for Reznor unit heater applications
