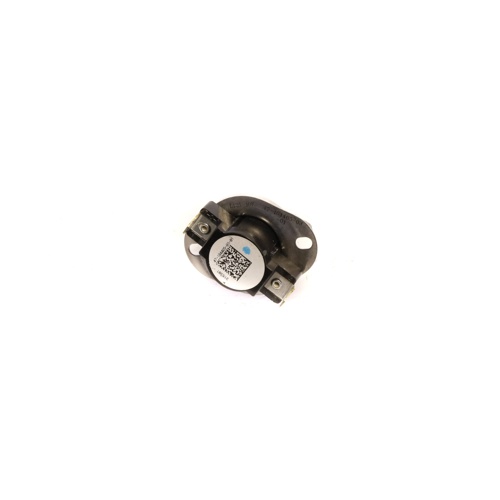

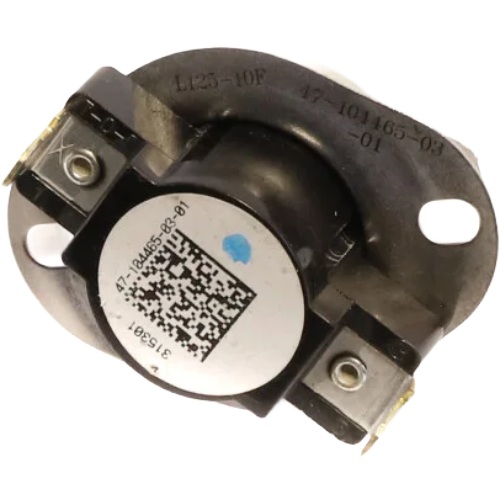

Rheem-Ruud 47-104465-03 General Purpose Limit Switch Overview
The Rheem-Ruud 47-104465-03 is an OEM general purpose temperature limit switch engineered for reliable overheat protection in residential and light commercial HVAC equipment. Blue color coding allows for fast, accurate identification during installation and service. The auto-reset design restores normal operation once temperatures return to a safe range, reducing service call frequency and system downtime.
Key Specifications
- Fixed Close Temperature: 115°F
- Fixed Open Temperature: 125°F
- Switch Type: SPST (Single Pole, Single Throw)
- Switch Action: Normally Closed (NC)
- Reset Type: Auto Reset
- Color Code: Blue
- Application: General Purpose Limit Switch
- Compatible Brand: Rheem / Ruud
- SKU: 47-104465-03
How It Works
This limit switch monitors supply air or heat exchanger temperatures within the HVAC system. When temperatures rise to the 125°F fixed open threshold, the SPST normally closed contacts open, interrupting the circuit to protect the equipment from overheating. Once temperatures drop back to 115°F, the auto-reset function automatically closes the contacts and restores normal system operation — no manual intervention required.
Features & Benefits
- OEM Rheem-Ruud replacement part for assured fit and compatibility
- Auto reset eliminates the need for manual reset after a limit trip
- Blue color coding simplifies identification among multiple limit switches
- Fixed temperature setpoints ensure consistent, repeatable performance
- SPST normally closed design provides a fail-safe circuit configuration
- General purpose rating supports a wide range of HVAC applications
Application
Designed as a direct OEM replacement for Rheem and Ruud furnaces and air handlers, the 47-104465-03 limit switch is ideal for HVAC technicians and contractors performing routine maintenance, warranty repairs, or equipment upgrades. Always verify compatibility with the specific unit model before installation.
