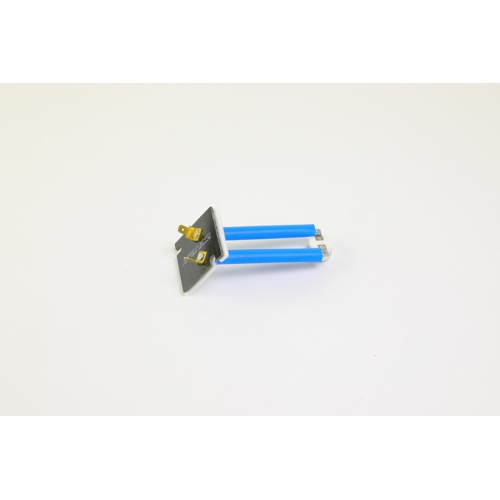

Rheem-Ruud 47-25350-02 Board Mounted General Purpose Limit Switch
The Rheem-Ruud 47-25350-02 is an OEM-grade, board-mounted general purpose limit switch engineered to protect furnaces and heating equipment from dangerous over-temperature conditions. Color-coded Blue/Blue for quick identification during installation and service, this limit switch delivers reliable, automatic protection with precise fixed open and close temperature setpoints.
Key Specifications
- Fixed Open Temperature: 210°F
- Fixed Close Temperature: 190°F
- Switch Type: SPST (Single Pole, Single Throw) Normally Closed
- Reset Type: Auto Reset
- Insertion Length: 3 inches
- Mounting Style: Board Mounted
- Color Code: Blue/Blue
- Compatible Brand: Rheem / Ruud
- Part Number: 47-25350-02
Product Overview
Designed as a direct OEM replacement for Rheem and Ruud heating systems, the 47-25350-02 limit switch monitors supply air or heat exchanger temperatures to prevent equipment damage and unsafe operating conditions. When temperatures exceed the 210°F fixed open setpoint, the normally closed switch opens to interrupt the heating circuit. Once temperatures drop back to the 190°F fixed close setpoint, the switch automatically resets — restoring normal operation without manual intervention.
Features & Benefits
- OEM direct replacement for Rheem and Ruud furnaces and heating equipment
- Fixed open/close setpoints eliminate the need for manual adjustment
- Auto reset functionality reduces service calls and downtime
- SPST normally closed design ensures fail-safe operation
- 3″ insertion length for proper sensing depth in standard applications
- Board-mounted configuration for clean, secure installation
- Blue/Blue color coding simplifies identification during installation and troubleshooting
- Protects heat exchangers and system components from thermal damage
Application
This limit switch is intended for use in Rheem and Ruud residential and light commercial furnaces and air handlers where over-temperature protection is required. Always verify compatibility with your specific equipment model before installation.
