Description

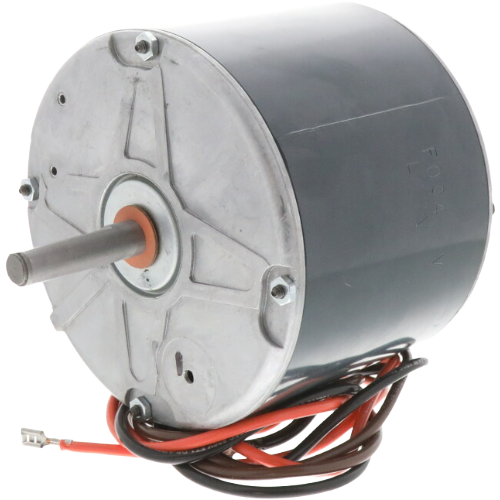

The Rheem-Ruud 51-101774-06 is an OEM replacement blower motor engineered for precision performance in Rheem and Ruud HVAC systems. Built as a Permanent Split Capacitor (PSC) motor, it delivers consistent, energy-efficient airflow at a single operating speed — making it a dependable drop-in solution for residential and light commercial air handlers and furnaces.
Motor Specifications
- Horsepower: 1/6 HP
- Voltage: 460 Vac, Single Phase
- Speed: 825 RPM, 1 Speed
- Amperage: 0.35 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- NEMA Frame Size: 48
- Enclosure Type: Totally Enclosed
- Bearing Type: Sleeve Bearing
Mechanical Details
- Mount Type: Shell-Band Mount
- Shaft Size: 1/2″ diameter x 2″ length
- Rotation: Counter-Clockwise (CCW)
Key Benefits
- OEM Rheem-Ruud part for guaranteed compatibility
- Totally enclosed enclosure protects against dust and debris intrusion
- Sleeve bearing design provides quiet, smooth operation
- PSC motor technology delivers efficient, reliable single-speed airflow
- Shell-band mount simplifies installation and replacement
- 460V single-phase rating suited for commercial HVAC applications
The totally enclosed housing guards internal windings against airborne contaminants, extending service life in demanding environments. The sleeve bearing construction minimizes vibration and noise during operation. Whether you’re performing a scheduled maintenance replacement or an emergency repair, the Rheem-Ruud 51-101774-06 restores your system to factory specifications quickly and confidently.
