Description

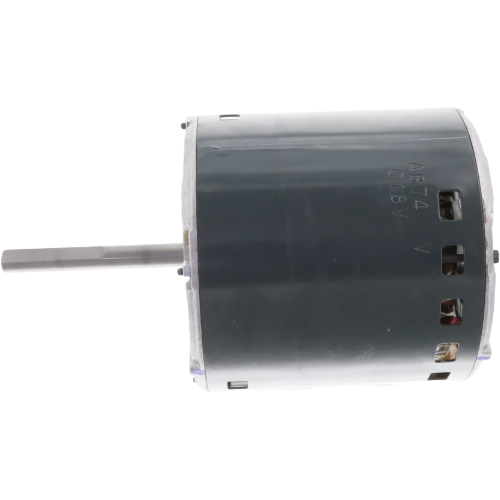

Rheem-Ruud OEM Replacement Blower Motor
The Rheem-Ruud 51-102182-03 is a factory-specified OEM replacement blower motor engineered for reliable, efficient airflow in Rheem and Ruud HVAC systems. Built to exacting OEM tolerances, this motor delivers consistent performance and a straightforward drop-in installation for qualified technicians.
Electrical Specifications
- Horsepower: 3/4 HP
- Voltage: 460 Vac
- Phase: Single Phase
- Amperage: 1.7 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- Speed: 2-Speed
- RPM: 1075
Mechanical Specifications
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mount Style: Shell-Band Mount
- Shaft Size: 1/2″ diameter x 3 3/4″ length
- Rotation: Counter-Clockwise (CCW)
Key Features & Benefits
- OEM-specified replacement for Rheem and Ruud equipment — ensures proper fit and performance
- Permanent Split Capacitor (PSC) design provides quiet, energy-efficient operation
- 2-speed capability allows flexible airflow control for heating and cooling modes
- Sleeve bearing construction offers smooth, low-noise operation
- Shell-band mount simplifies installation and secure motor retention
- CCW rotation pre-configured to match original equipment requirements
- 48 NEMA frame ensures dimensional compatibility with standard motor housings
Application
Designed as a direct OEM replacement blower motor for select Rheem and Ruud residential and light commercial air handlers and furnaces. Always verify compatibility with your specific equipment model number before installation.
