Description

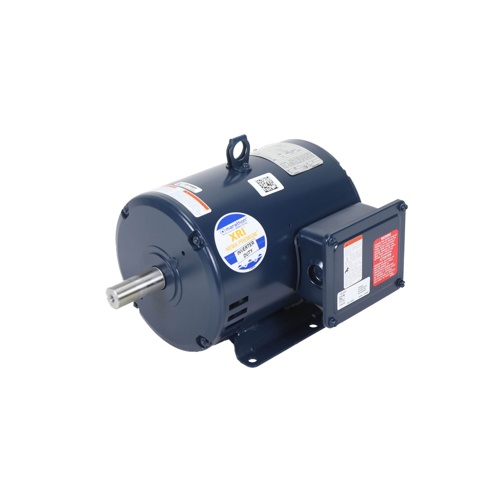

Rheem-Ruud OEM Replacement Blower Motor
The Rheem-Ruud 51-102826-06 is a heavy-duty OEM replacement blower motor engineered for reliable performance in commercial and residential HVAC air-handling applications. Built to Rheem-Ruud specifications, this motor delivers consistent airflow and long service life in demanding installations.
Electrical Specifications
- Horsepower: 5 HP
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 13.6 / 12.6 / 6.3 Amps
Mechanical Specifications
- NEMA Frame Size: S184T
- Bearing Type: Ball Bearing
- Mount Type: Platform Mount
- Shaft Dimensions: 1-1/8″ diameter x 2-3/4″ length
- Rotation: Reversible
Key Features & Benefits
- OEM replacement motor for Rheem-Ruud equipment — ensures proper fit and performance
- Three-phase design for efficient, smooth operation in commercial HVAC systems
- Dual voltage capability (208-230/460V) provides installation flexibility
- Ball bearing construction for reduced friction, quieter operation, and extended motor life
- Reversible rotation allows versatile installation configurations
- Platform mount design for straightforward mounting and alignment
- S184T NEMA frame ensures dimensional compatibility with standard motor mounts
Application
Designed as a direct OEM replacement for Rheem-Ruud air handlers and blower assemblies. The three-phase, dual-voltage configuration makes this motor well-suited for light commercial and commercial HVAC systems where dependable, high-efficiency blower operation is required.
