Description

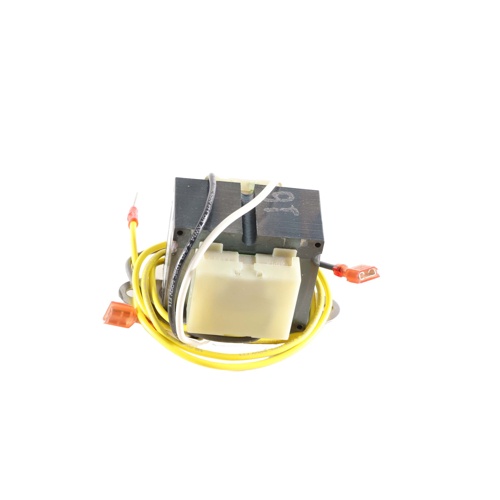

The Rheem-Ruud SP10550B is a purpose-built HVAC control transformer designed to deliver stable, low-voltage power to the control circuits of Rheem and Ruud heating and cooling equipment. With a 120V primary input and a 24V secondary output at a 40VA capacity, this transformer reliably powers thermostats, control boards, and other 24V accessories throughout the system.
Key Features
- Primary voltage: 120V AC
- Secondary voltage: 24V AC
- VA rating: 40VA
- OEM replacement part for compatible Rheem and Ruud systems
- Provides stable 24V power to thermostats, relays, and control boards
- Direct drop-in replacement for simplified installation
- Designed for long-lasting, dependable performance in residential and light commercial HVAC applications
Application
The SP10550B transformer is the correct OEM replacement for Rheem and Ruud systems requiring a 120V-to-24V step-down transformer. It supplies the low-voltage control power needed to operate thermostats, gas valve coils, relays, and integrated control boards. Using a genuine Rheem-Ruud replacement transformer ensures compatibility and maintains system reliability.
Installation Notes
- Verify primary voltage supply is 120V AC before installation
- Confirm the system’s total VA load does not exceed 40VA
- Match wiring connections to original transformer terminals for proper operation
- Consult equipment service manual for mounting and wiring specifications
