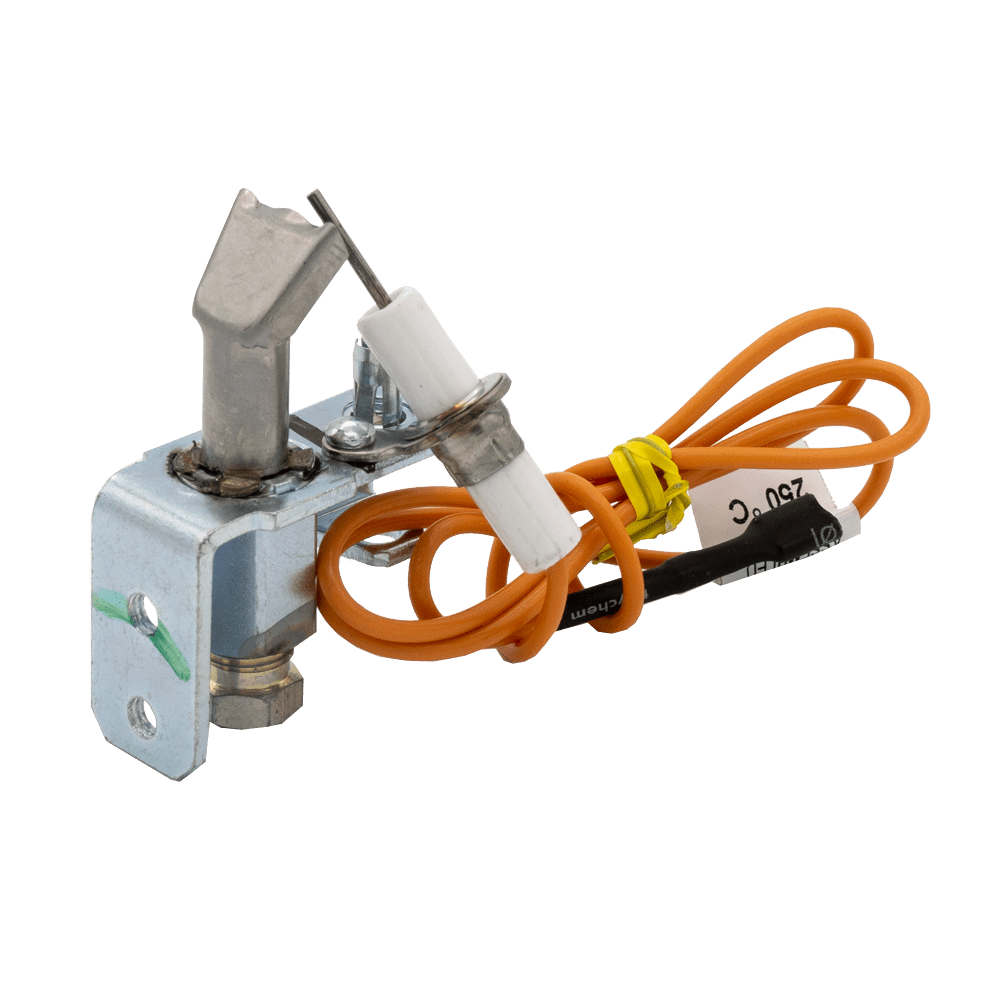

Robertshaw 1830-718 24in Pilot Electrode Assembly with Standard Flame

BRAND: Robertshaw SKU: 1830-718

$47.99

MSRP: $100.51
You save 52%

24″ Pilot Electrode Assembly with Standard Flame (2S-60)

Availability:

10 In Stock

Description

The Robertshaw 1830-700 Series Pilot Uni-Kits® are designed for use with 2S-60 OEM-style Pilot Ignition systems. The electrode is permanently riveted to the pilot frame and the spark gap is fixed at 1/8”. These pilots can be used to replace existing pilot assemblies or for retrofitting standing pilot applications when an exact replacement is desired. Each Uni-Kit comes with a natural gas orifice installed and a separate L.P. gas orifice. Pilot tubing size is 1/4".

Features
  • Many flame pattern types available
  • Thermocouple or thermopile options
  • Spark electrode available
  • Horizontal or vertical gas inlet
  • Several mounting bracket types available
  • Aerated pilots with non-linting characteristics
