Description

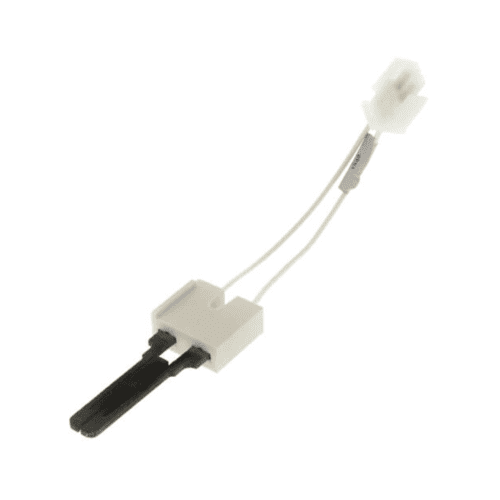

The Robertshaw 41-408 Carbide Series Hot Surface Igniter is a dependable heating system ignitor for furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

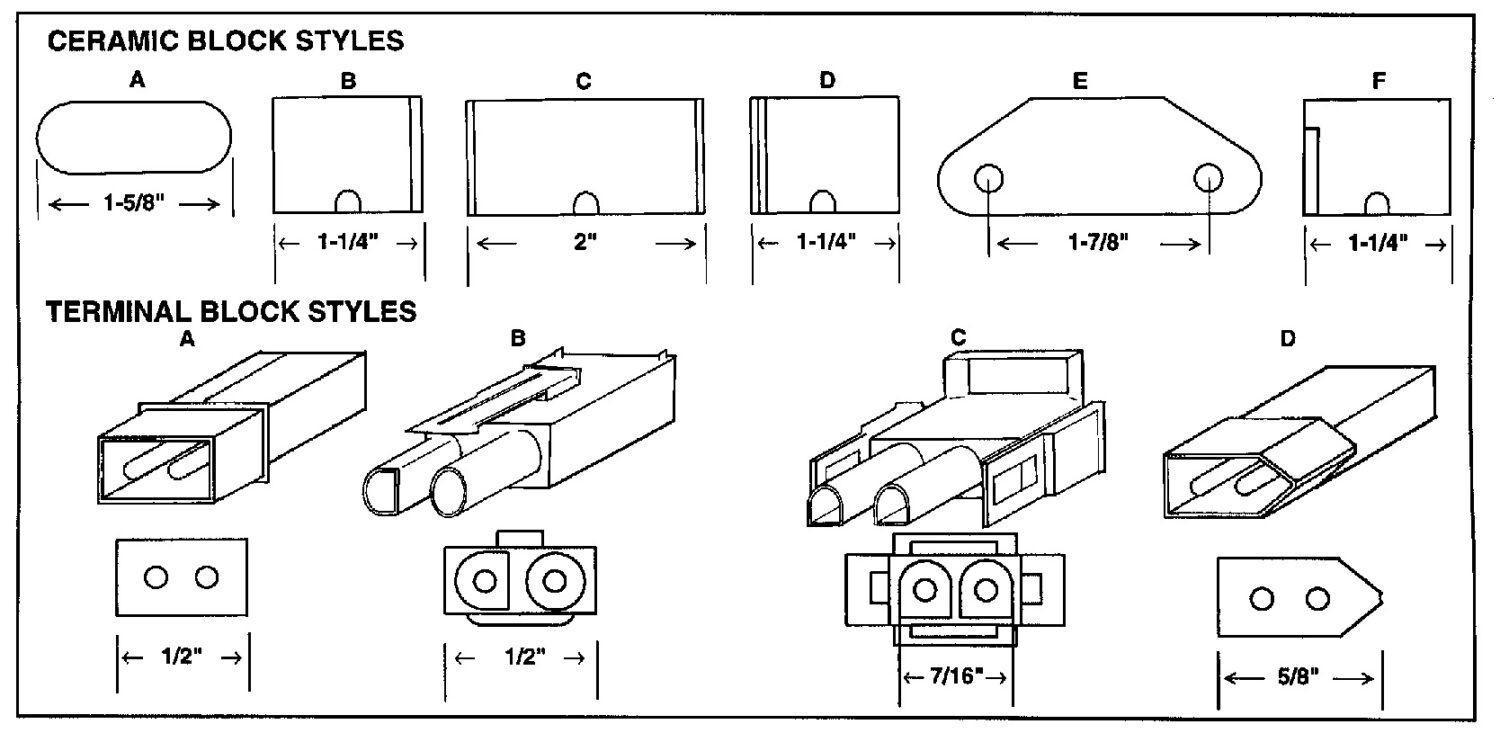

This Hot Surface Igniter has a ceramic base of 1-1/4in wide and 1/2in thick. The wire leads measure 5-1/2in long.
The 41-408 Carbide Series Hot Surface Igniters are made of recrystalized silicon carbide with a high purity rating. This material combines physical and thermal strength while establishing stable electrical properties for this ignitor. Additionally, the lead wires are made out of 18-gauge nickel chrome that are metalized in place for maximum strength and electrical conductivity. These wires are also enclosed in high-temperature fiberglass for extra insulation and protection.
Each Hot Surface Ignitor in the Robertshaw 41-400 Series are designed to reach ignition temperatures within 17 seconds!
Features
- High-Purity Recrystallized Silicon Carbide (Crystar™)
- Reaches Ignition Temperature(s) within 17 Seconds
- 18-Gauge Nickel Chrome Lead Wires
- Lead wires are Enclosed in High-Temperature Fiberglass Insulation
- Operates at 120V AC
Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC
