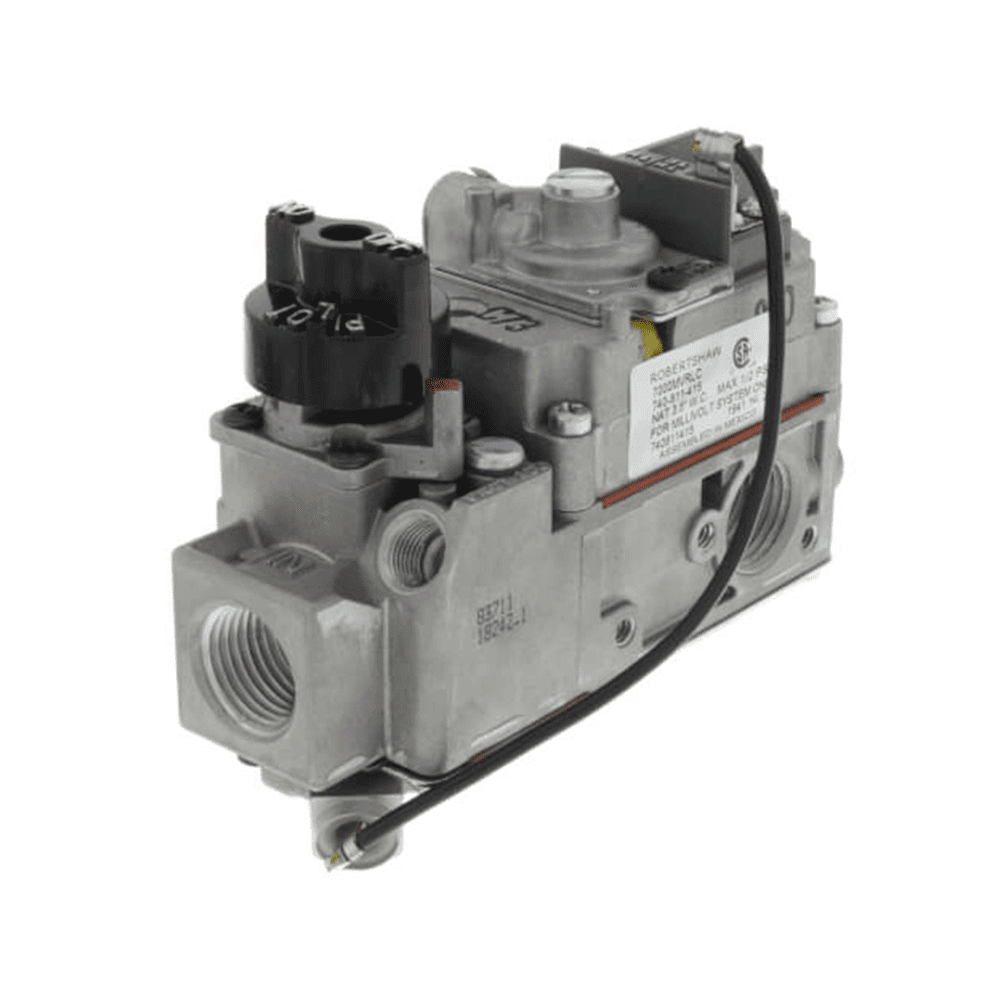

Robertshaw 710-502 100,000BTU Capacity Gas Valve, Pressure Regulation

BRAND: Robertshaw SKU: 710-502

$91.73

MSRP: $450.31
You save 80%

100,000 BTU Capacity Gas Valve with Pressure Regulation

Free Shipping
Ships Tomorrow
Availability:

3 In Stock

Description

The Robertshaw 710-502 is a 100,000 BTU Gas Valve with 3.5" WC Natural Gas Pressure Regulation designed for low capaicty and limited space applications like RVs and small spaces. Each of the Robertshaw 710 Series Low Capacity Gas Valves are designed to be extremely compact for the tightest spaces!

The Robertshaw 710-502 has three-position outlets, multi-positional capability, and component replaceability.

Dimensions: 3-13/16in High by 4-21/32in Long by 1-29/32in Wide

Features

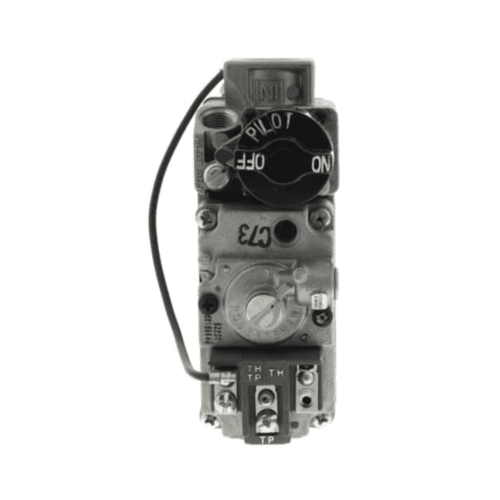

  • Gas cock dial marking Off – Pilot – On
  • Ambient temperature of -40°F to 175°F
  • Pilot outlet 1/4” tubing
  • Maximum inlet pressure 14” WC (0.5 PSI)
  • Standard NEMA terminals
  • Inlet filtered screen
  • Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
  • Multiple actuators available
  • RoHS compliant

Additional information

Capacity

Voltage

Inlet Connection Size

Outlet Connection Size

Fuel Type

, , , ,

Pilot Gas Outlet

Ambient Temperature

UPC 662013634278
