Robertshaw IMV-990 Water Solenoid Inlet Valve Pump for Whirlpool

BRAND: Robertshaw SKU: IMV-990

$29.99

MSRP: $44.69
You save 33%

Water Solenoid Inlet Valve Pump for Whirlpool

Free Shipping
Ships Tomorrow
Availability:

3 In Stock

Description

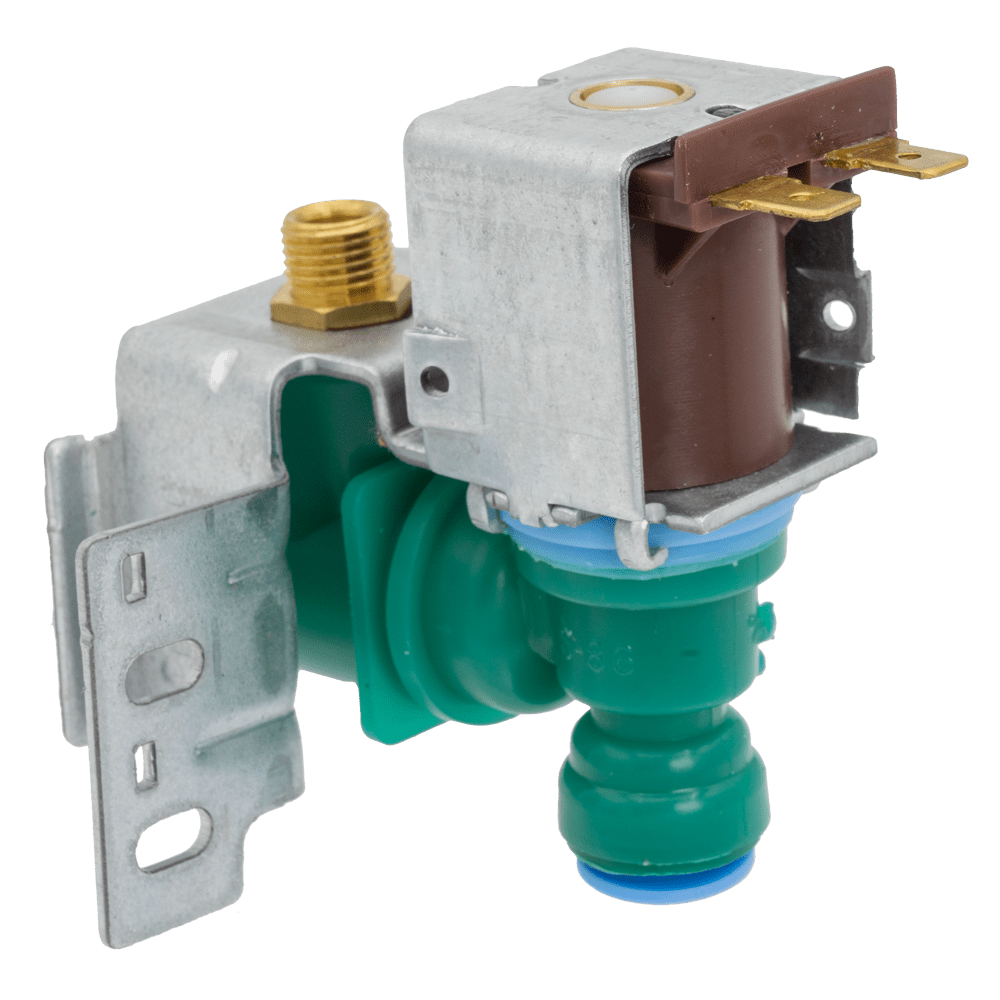

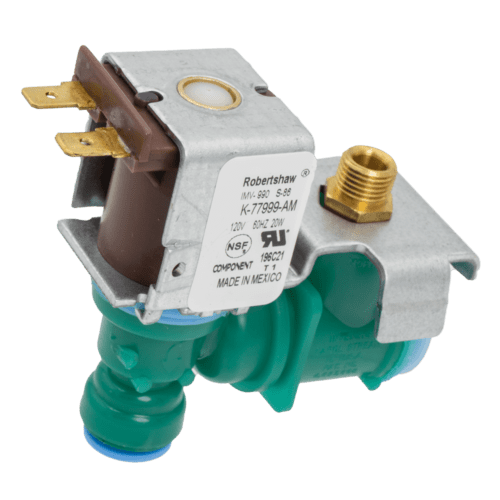

The Robertshaw IMV-990 is a 120V AC, 60 Hz, 20W residential ice machine S-86 Dual Water Valve.

The Robertshaw S-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers.

Features
  • Direct acting armature provides high flow capacity with minimum power requirements
  • Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
  • Unique armature and seat design reduce unwanted particles from entering the armature area
  • Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
  • Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
  • Suitable for applications using water at temperatures up to 160°F (71°C)
Specifications
  • Series Application: Residential Ice Machine Water Valve S-86 Dual
  • Electrical Rating: 120V AC, 60 Hz, 20W
  • Body Material: Polypro
  • Operating Pressure: 20 PSI to 120 PSI
  • Inlet Size: 7/16" 24 UNS
  • Outlet: 5/16" quick connect
  • Terminals: 1/4" Male
  • Flow Rate: 180-600 CC in 7.5 seconds
  • Replaces: Whirlpool W10342318, Whirlpool 10498990
  • Factory Part Number: K-77999

Additional information

Voltage

120V

Frequency

60 Hz

Wattage

20 Watts

Body Material

Polypro

Operating Pressure

20 PSI to 120 PSI

Outlet

5/16" quick connect

Terminals

1/4" Male

Flow Rate

180-600 CC in 7.5 seconds

UPC 662013221737
