Description

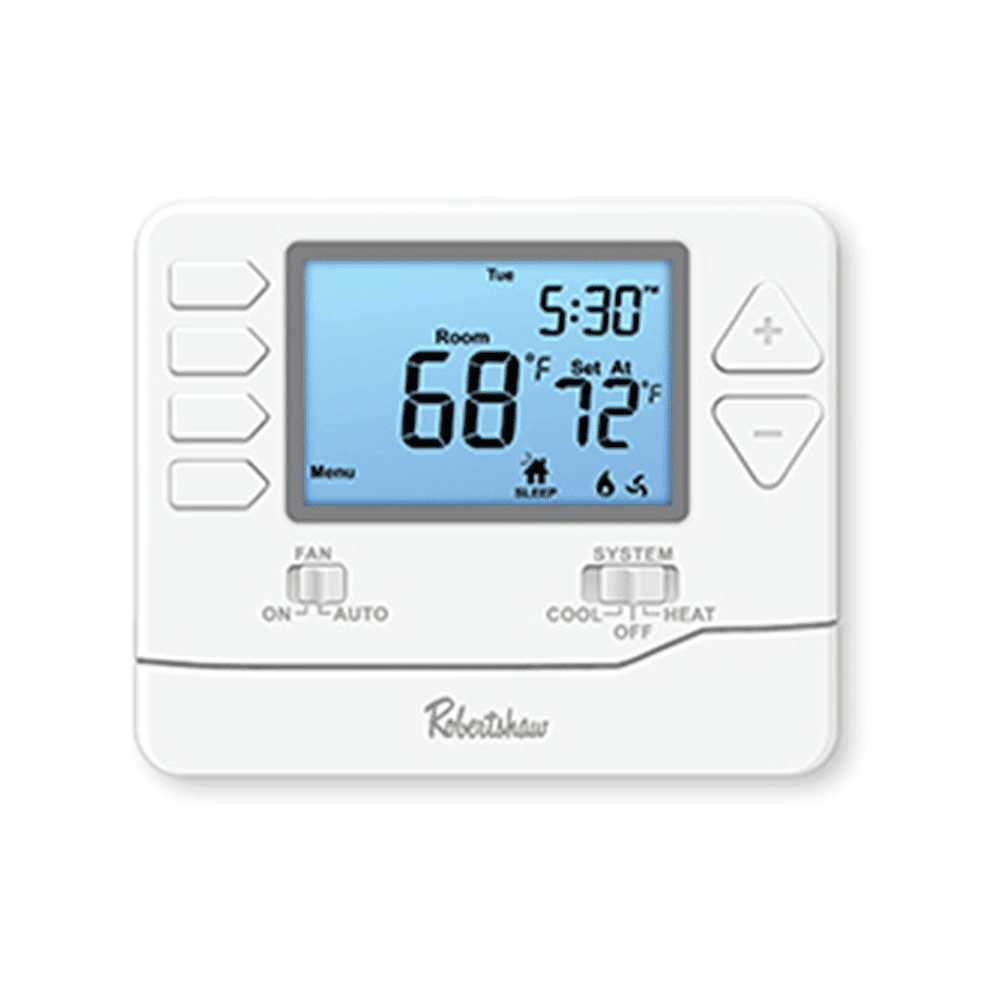

The Robertshaw RS8210 is a multi-state non-programmable thermostat that ontractors can offer owners easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design with the RS8210 non-programmable wall thermostat.
Features
- Large terminal blocks for easy installation
- Universal sub-base
- Quick access menu button
- Contractor/technician setup menu Simple, yet powerful control.
- Large, easy-to-read 4.6-square-inch blue backlit display
- 24V AC Powered OR Battery Operation (Included)
- 6Year Limited Warranty
- Easy-access front-load battery compartment
- Adjustable temperature differential (swing) for energy optimization and maximum system life
- Adjustable room temperature calibration
- Adjustable setpoint limits
- Filter change reminder
- Five-minute selectable on/off compressor delay protection for short-cycling prevention
- Separate O and B terminals
Specifications
- Dimensions 4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
- Mounting Type Wall or junction box
- Temperature Range 41°F to 95°F (5°C to 35°C)
- Power Source 24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included)
- Terminals: R, C, Y, W2, W/E, G, O, B
