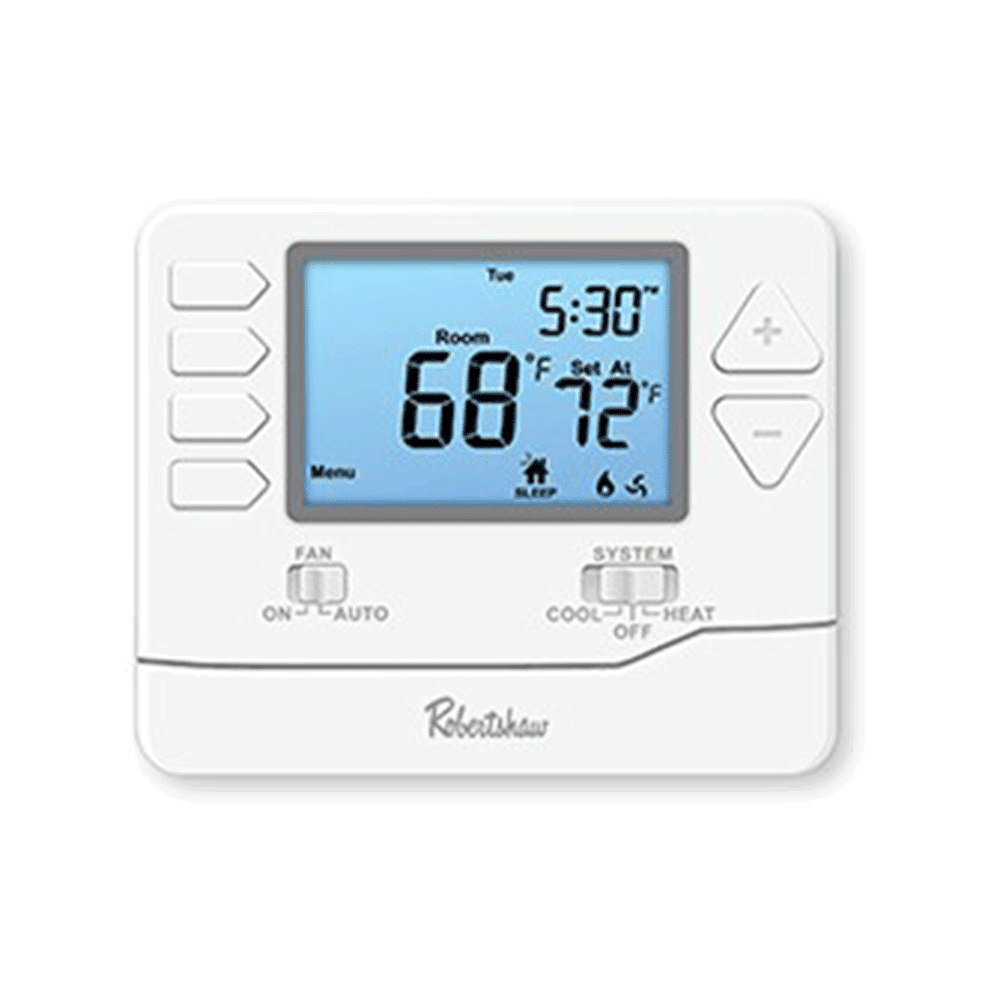

Robertshaw RS9110 Programmable Single-Stage Thermostat, 1H/1C

BRAND: Robertshaw SKU: RS9110

(1 customer review)

$38.99

MSRP: $69.37
You save 44%

Programmable Single Stage Thermostat

Free Shipping
Ships Today
Availability:

24 In Stock

Description

The Robertshaw RS9110 is a 1 Heat / 1 Cool programmable thermostat that contractors can offer to owners that is easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS9110 programmable wall thermostat.

Features
  • Large terminal blocks for easy installation
  • Universal sub-base
  • Quick-access menu button
  • Contractor/technician setup menu
  • Easy-to-understand programming menus
  • Intuitive wake, leave, return, sleep programming icons
  • 24V AC Powered OR Battery Operation (Included)
  • 6Year Limited Warranty
  • Factory pre-set energy efficiency program Simple, yet powerful control.
  • Large, easy-to-read 4.6-square-inch blue backlit display
  • Easy-access front-load battery compartment
  • Adjustable temperature differential (swing) for energy optimization and maximum system life
  • Adjustable room temperature calibration
  • Adjustable setpoint limits
  • Five-minute selectable on/off compressor delay protection for short-cycling prevention
  • Separate O and B terminals
  • Filter change reminder
Specifications
  • Dimensions: 4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
  • Mounting Type: Wall or junction box
  • Temperature Range: 41°F to 95°F (5°C to 35°C)
  • Power Source: 24V AC (18 to 30V AC), 50/60 Hz for hardwire (common wire or 2 AAA 1.5V alkaline batteries (included)
  • Terminals: Rh, Rc, C, Y, W, G, O, B

Additional information

Imprinting

Mount

Power Type

Stages/Equipment

Temperature Range

Terminal Designations

UPC 662013228217
Imprinting Available Yes
