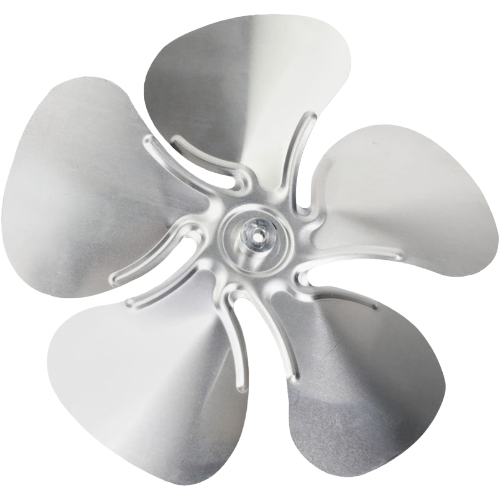

Russell Coil 119103001 Fan Blade Overview
The Russell Coil 119103001 is a precision-engineered replacement fan blade designed for use in commercial refrigeration and HVAC coil unit applications. Built to Russell Coil’s exacting standards, this blade delivers consistent, efficient airflow to maintain optimal coil performance and system reliability.
Key Specifications
- Blade Diameter: 12 inches
- Blade Pitch Angle: 23 degrees
- Bore Size: 5/16 inch
- Rotation Direction: CCW (Counter-Clockwise)
- Brand: Russell Coil
- Part Number: 119103001
Features & Benefits
- Direct OEM replacement for Russell Coil refrigeration unit evaporator and condenser fan assemblies
- 23-degree blade pitch optimized for efficient air movement across coil surfaces
- 5/16″ bore provides a secure, precise fit on compatible motor shafts
- Counter-clockwise (CCW) rotation ensures correct airflow direction for designed coil configurations
- 12-inch diameter delivers strong, uniform airflow coverage across the coil face
- Durable construction for long service life in demanding refrigeration environments
Applications
- Commercial refrigeration evaporator coil units
- Walk-in cooler and freezer fan assemblies
- Reach-in display case coil units
- HVAC coil fan motor replacement applications
Installation Notes
Always verify rotation direction (CCW when viewed from the motor side) and confirm bore size compatibility with the existing motor shaft before installation. Ensure the replacement blade matches the original pitch angle and diameter for proper airflow performance.
