Description
Overview

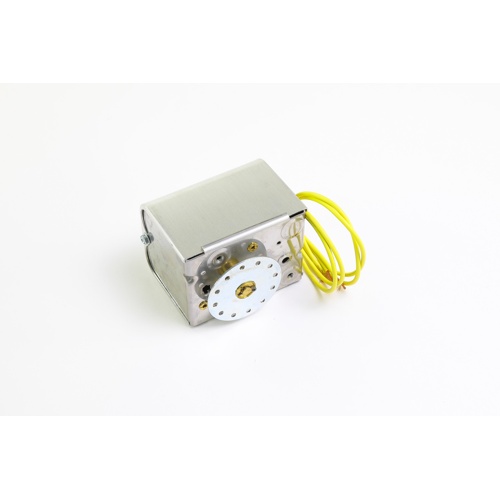

The Schneider Electric (Erie) 0453H0038GA00 is a medium duty, two-position damper actuator engineered for reliable airflow control in commercial and light industrial HVAC systems. Designed for linkage drive installations, this actuator delivers consistent clockwise (CW) rotation with a dependable spring return mechanism that ensures the damper returns to its fail-safe position upon loss of power — a critical safety feature for building automation and ventilation applications.
Key Features
- 24VAC operating voltage for compatibility with standard HVAC control systems
- 55 in-oz torque rating for medium duty damper applications
- Linkage drive design for straightforward field installation and adjustment
- Clockwise (CW) rotation for proper damper blade positioning
- Spring return operation ensures fail-safe damper positioning on power loss
- Two-position control (open/closed) for simple on/off damper actuation
- Medium duty construction built for long-term commercial HVAC service
Application
The 0453H0038GA00 is ideal for use in commercial HVAC air handling units, ventilation systems, and building automation applications where dependable two-position damper control is required. Its spring return feature makes it well suited for outside air, exhaust, and mixed-air dampers where fail-safe closure or opening is essential to system safety and energy efficiency.
Specifications
- SKU: 0453H0038GA00
- Brand: Schneider Electric (Erie)
- Supply Voltage: 24VAC
- Torque Rating: 55 in-oz
- Duty Rating: Medium Duty
- Drive Type: Linkage Drive
- Rotation: Clockwise (CW)
- Return Type: Spring Return
- Control Type: Two Position
- Actuator Type: Damper Actuator / Motor Actuator
