Description

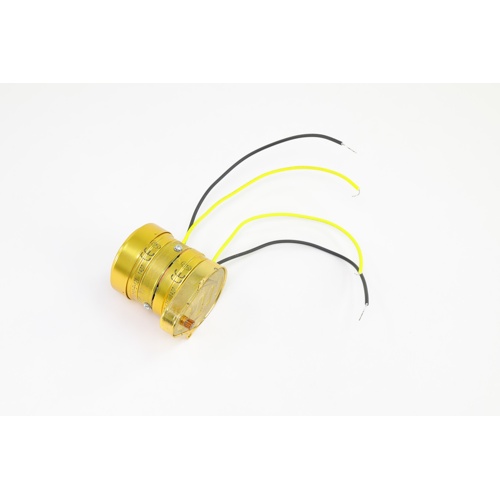

The Schneider Electric (Erie) 30-140-A is a factory-direct replacement spring return, two-position actuator motor engineered specifically for Erie R Classic valves and dampers. Operating on 24V at 50/60 Hz, this motor delivers reliable on/off control in a wide range of HVAC hydronic and air-side applications. Its Class “F” insulation rating ensures dependable performance in higher-temperature environments, making it a trusted choice for commercial and light-industrial HVAC systems.
Key Features
- Direct replacement motor for Erie R Classic valves and dampers
- 24V operating voltage at 50/60 Hz — compatible with standard low-voltage control systems
- Spring return, two-position (open/close) operation for fail-safe positioning
- Class “F” insulation rating for enhanced thermal durability
- Designed for long-term reliability in commercial HVAC applications
Specifications
- SKU: 30-140-A
- Brand: Schneider Electric (Erie)
- Voltage: 24V
- Frequency: 50/60 Hz
- Motor Type: Spring Return, Two-Position
- Insulation Class: Class “F”
- Compatible Equipment: Erie R Classic Valves and Dampers
Application
Ideal for replacing worn or failed actuator motors on Erie R Classic zone valves and dampers in hydronic heating, chilled water, and air distribution systems. The spring return design ensures the valve or damper returns to its fail-safe position upon loss of power, providing an added layer of system protection.
