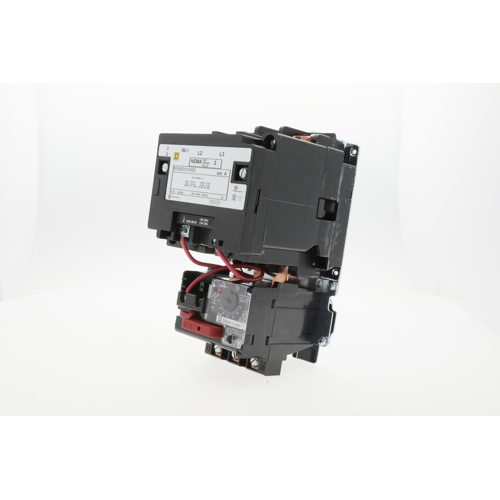

Schneider Electric (Square D) 8536SDO1V02H30S 120V Size 2 Motor Starter

Description

The Schneider Electric (Square D) 8536SDO1V02H30S is a full-voltage, non-reversing NEMA motor starter designed to provide dependable motor control and overload protection in commercial and industrial HVAC applications. Built to the trusted Square D standard, this Size 2 starter is engineered for demanding environments where reliable motor management is critical.

Product Overview

As part of the Square D 8536S series, the 8536SDO1V02H30S combines a contactor and overload relay in a single, integrated package. The 120V control voltage coil makes it compatible with standard HVAC control circuits, simplifying installation and integration with existing building automation and motor control systems.

Key Features

• NEMA Size 2 motor starter for medium-duty motor control applications
• 120V AC control coil voltage for compatibility with standard HVAC control circuits
• Full-voltage, non-reversing (FVNR) operation for straightforward motor starting
• Integrated overload relay provides built-in motor protection against overcurrent conditions
• Square D quality construction for long service life and dependable performance
• Suitable for commercial and industrial HVAC, pump, fan, and compressor motor applications
• Designed for use in motor control centers (MCCs) or standalone enclosures

Application

This motor starter is ideal for HVAC professionals and electrical contractors managing fan motors, pump motors, air handling units, cooling towers, and compressor systems. The NEMA Size 2 rating accommodates a broad range of motor horsepower, making it a versatile solution for commercial mechanical rooms and industrial facilities.

Why Choose Square D Motor Starters

Schneider Electric’s Square D brand is a globally recognized leader in electrical distribution and motor control. The 8536S series starters are known for their rugged construction, ease of maintenance, and wide availability of replacement parts and accessories — including coils, overload relays, and contact kits — ensuring long-term serviceability in the field.
