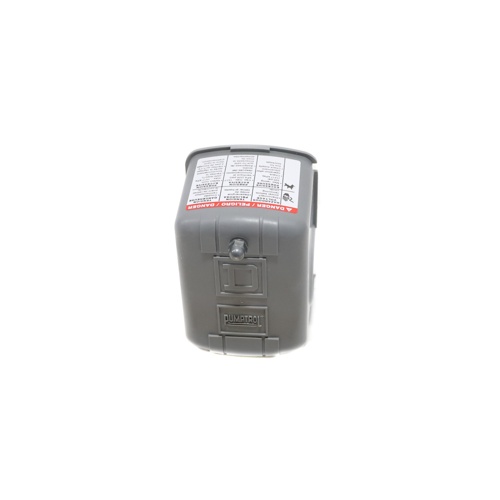

Schneider Electric (Square D) 9013FSG2J20P 10/65 PSI DPST Pressure Switch 20# On / 40# Off

Description

Schneider Electric (Square D) 9013FSG2J20P Pressure Switch Overview

The Schneider Electric (Square D) 9013FSG2J20P is a heavy-duty electromechanical pressure switch from the trusted 9013FSG series. Designed for demanding HVAC, pumping, and compressed air applications, this switch features a Double Pole Single Throw (DPST) contact configuration with factory-set cut-in and cut-out pressure points for reliable, repeatable performance.

Key Features

• Series: Square D 9013FSG — industry-standard electromechanical pressure switch
• Pressure range: 10 to 65 PSI (10/65#)
• Factory set points: 20 PSI cut-in (On) / 40 PSI cut-out (Off)
• Contact configuration: DPST (Double Pole Single Throw)
• Designed for use with air, water, oil, and non-corrosive fluids
• Rugged construction for long service life in commercial and industrial environments
• Suitable for pump control, compressor control, and HVAC system protection

Specifications

• SKU / Model: 9013FSG2J20P
• Brand: Schneider Electric (Square D)
• Pressure Range: 10–65 PSI
• Cut-In Pressure: 20 PSI
• Cut-Out Pressure: 40 PSI
• Contact Type: DPST (Double Pole Single Throw)
• Series: 9013FSG

Application

The 9013FSG2J20P is ideal for controlling electrically driven pumps, air compressors, and HVAC equipment where automatic start/stop based on system pressure is required. Its DPST contact arrangement allows simultaneous switching of two circuits, making it well-suited for applications requiring added circuit control or safety interlock functionality.
