Description

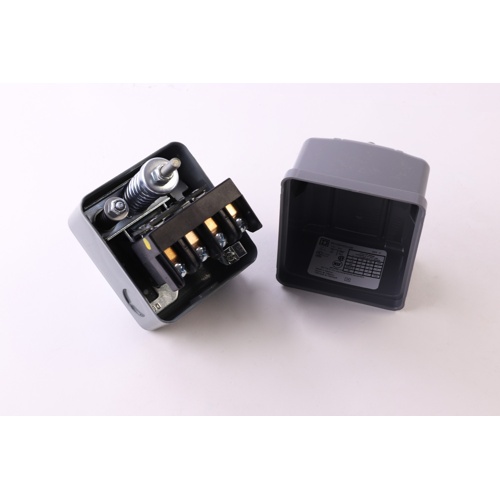

The Schneider Electric (Square D) 9013GHG2J26 is a heavy-duty, 2-pole pressure switch engineered for dependable automatic pressure control in HVAC, compressor, pump, and industrial fluid system applications. Part of Square D’s trusted 9013G series, this switch provides precise cut-in and cut-out pressure settings to protect equipment and maintain consistent system pressure.
Key Features
- 2-Pole switching configuration for versatile circuit control
- 1/4″ pressure port connection for easy system integration
- Factory-set cut-in (On) pressure: 70 PSI
- Factory-set cut-out (Off) pressure: 90 PSI
- Designed for automatic start/stop control of compressors, pumps, and HVAC equipment
- Part of Square D’s proven 9013G pressure switch series
- Rugged construction for reliable long-term performance in demanding environments
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 9013GHG2J26
- Switch Type: Pressure Switch
- Number of Poles: 2
- Port Size: 1/4″
- Cut-In (On) Pressure: 70 PSI
- Cut-Out (Off) Pressure: 90 PSI
- Series: 9013G
Application
The 9013GHG2J26 is ideal for use in air compressor systems, water pump controls, HVAC pressure monitoring circuits, and other industrial or commercial applications requiring automatic pressure-actuated switching. The 2-pole design allows control of two separate circuit legs simultaneously, making it well-suited for three-phase or dual-circuit installations.
