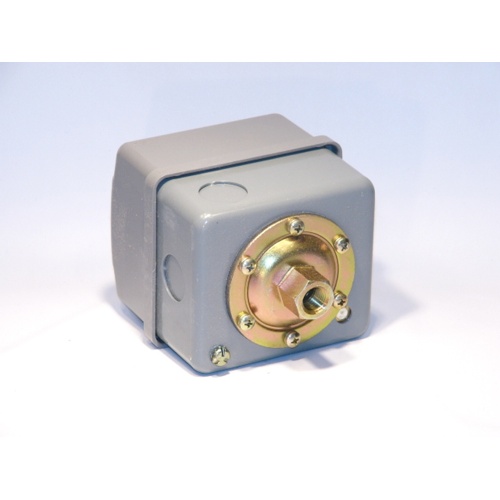

Schneider Electric (Square D) 9013GSG2J25 Pressure Switch 5/80 PSI 10A DPST

Description

Schneider Electric (Square D) 9013GSG2J25 Pressure Switch Overview

The Schneider Electric (Square D) 9013GSG2J25 is a heavy-duty electromechanical pressure switch engineered for dependable pressure sensing and control in HVAC, industrial, and commercial applications. Part of Square D’s trusted 9013G series, this switch offers precise cut-in and cut-out setpoints to protect equipment and maintain system pressure within defined operating limits.

Key Specifications

• Pressure Range: 5–80 PSI
• Cut-In (ON) Setpoint: 60 PSI
• Cut-Out (OFF) Setpoint: 80 PSI
• Current Rating: 10 Amps
• Switch Configuration: DPST (Double Pole Single Throw)
• Series: Square D 9013G
• Brand: Schneider Electric (Square D)
• SKU: 9013GSG2J25

Features & Benefits

• DPST switching action provides reliable open/close control in a single switching operation
• Factory-set cut-in at 60 PSI and cut-out at 80 PSI for consistent, repeatable performance
• 5–80 PSI operating range suits a wide variety of HVAC and fluid system applications
• 10A current rating handles typical motor and control circuit loads
• Rugged Square D construction ensures long service life in demanding environments
• Drop-in replacement within the 9013G series for fast, straightforward installation

Typical Applications

• Compressor pressure control and protection
• Pump start/stop pressure management
• HVAC refrigeration and hydronic system pressure monitoring
• Industrial fluid and air pressure control circuits
