Description

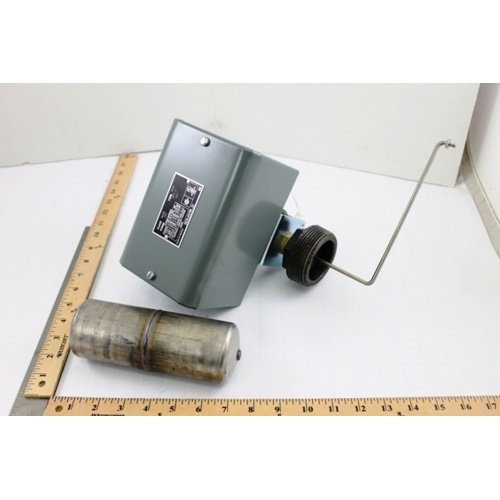

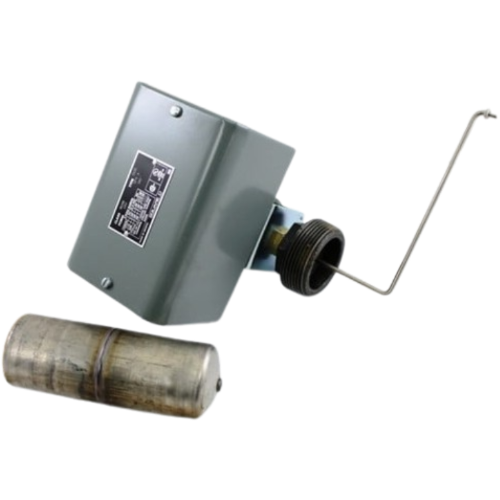

The Schneider Electric (Square D) 9038CG32Z20 is a heavy-duty flanged float switch engineered for dependable liquid level detection and control in demanding commercial and industrial HVAC and hydronic applications. Built with a stainless steel construction, this switch delivers long-lasting corrosion resistance in wet and harsh environments.
Key Features
- 575V rated voltage for compatibility with higher-voltage commercial and industrial systems
- 1HP motor load capacity for robust switching performance
- Double Pole Single Throw (DPST) switching action for straightforward open/close circuit control
- Stainless steel wetted components for superior corrosion resistance and durability
- Flanged mounting design for secure, leak-free installation on tanks and vessels
- Ideal for pump control, high/low level alarms, and liquid level monitoring in HVAC, boiler, and hydronic systems
Specifications
- Brand: Schneider Electric (Square D)
- SKU / Part Number: 9038CG32Z20
- Voltage Rating: 575V
- Horsepower Rating: 1HP
- Switch Type: DPST (Double Pole Single Throw)
- Mounting Style: Flanged
- Wetted Material: Stainless Steel (SS)
Applications
- Commercial boiler and hydronic system liquid level control
- Pump start/stop automation based on tank or sump levels
- High and low liquid level alarm circuits
- Industrial process fluid monitoring
- HVAC condensate and water management systems
Trust Schneider Electric’s Square D 9038 Series float switches for proven reliability in level control applications. The 9038CG32Z20 is a premium choice where corrosion resistance, high-voltage compatibility, and secure flanged mounting are required.
