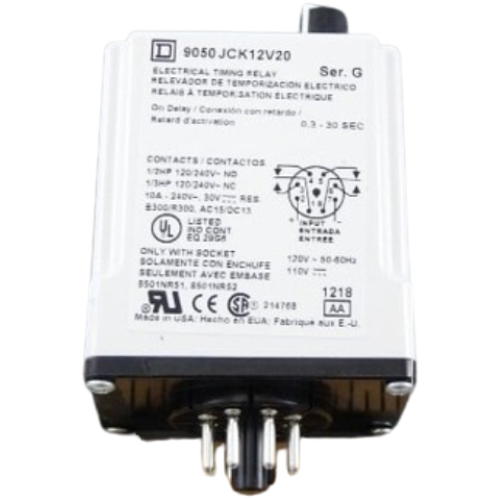

Schneider Electric (Square D) 9050JCK12V20 Time Delay Relay Overview
The Schneider Electric (Square D) 9050JCK12V20 is a heavy-duty time delay relay engineered for dependable sequencing and control in HVAC, industrial, and commercial electrical systems. Rated at 120V and 10A with a Double Pole Double Throw (DPDT) contact configuration, this relay delivers the switching versatility and timing precision needed to protect equipment, coordinate start-up sequences, and prevent nuisance tripping in demanding environments.
Key Features
- 120V coil voltage for direct integration with standard HVAC and commercial control circuits
- 10A contact rating for reliable switching of moderate electrical loads
- DPDT (Double Pole Double Throw) contact arrangement provides two independently switched circuits in a single relay body
- Time delay functionality enables programmable on-delay or off-delay sequencing to protect compressors, motors, and other HVAC components
- Rugged construction built to Schneider Electric (Square D) quality standards for long service life
- Compact form factor suitable for panel mounting and enclosure installation
Typical Applications
- HVAC system start-up and shutdown sequencing
- Compressor and motor time-delay protection
- Commercial and industrial control panels
- Fan and blower staging circuits
- General-purpose time-delay switching in building automation systems
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 9050JCK12V20
- Coil Voltage: 120V
- Contact Current Rating: 10A
- Contact Configuration: DPDT (Double Pole Double Throw)
- Relay Type: Time Delay
Trust the Schneider Electric (Square D) 9050JCK12V20 to deliver accurate, repeatable time delay switching in your most critical HVAC and control applications. Order from Jackson Systems for fast shipping and expert support.
