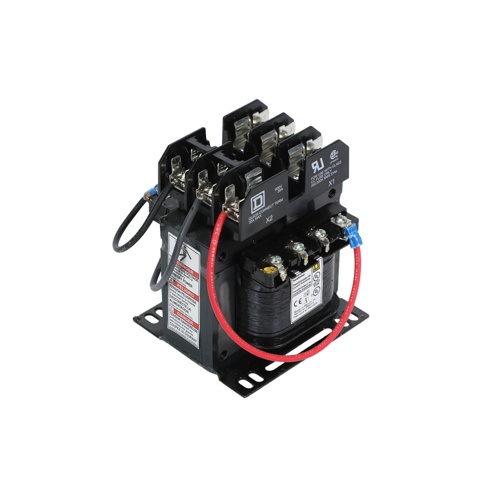

Schneider Electric (Square D) 9070TF100D20 — 100VA Machine Tool Transformer
The Schneider Electric (Square D) 9070TF100D20 is a rugged, single-phase machine tool transformer engineered to deliver dependable step-down voltage conversion for industrial and commercial control circuit applications. With a 100VA capacity and multi-tap primary voltage compatibility, this transformer is a versatile solution for HVAC control panels, machine tool circuits, and building automation systems.
Key Features
- 100VA transformer capacity — suitable for powering control circuits and auxiliary loads
- Multi-tap primary voltage: 208V, 230V, and 460V — adapts to a wide range of power supply configurations
- 120V secondary output — provides standard control circuit voltage for contactors, relays, and control boards
- Single-phase, 60Hz operation
- Compact, panel-mount design for easy integration into electrical enclosures and control panels
- Manufactured to Square D / Schneider Electric quality standards for long-term reliability
- Ideal for HVAC systems, machine tools, and industrial control applications
Specifications
- SKU: 9070TF100D20
- Brand: Schneider Electric (Square D)
- VA Rating: 100VA
- Primary Voltage: 208V / 230V / 460V
- Secondary Voltage: 120V
- Phase: Single-Phase
- Frequency: 60Hz
- Type: Machine Tool Transformer
Applications
- HVAC control panels and building automation systems
- Industrial machine tool control circuits
- Commercial electrical enclosures requiring step-down voltage conversion
- Relay and contactor control circuits
