Description
Product Overview

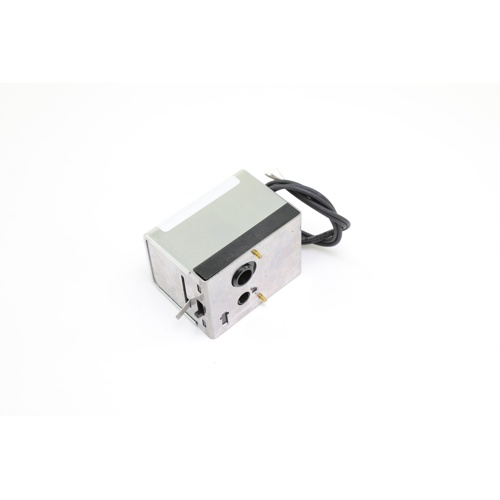

The Schneider Electric (Erie) AG14U020 is a high-performance motor actuator engineered for dependable two-position control in demanding HVAC and building automation applications. Designed for 240VAC systems, this actuator features spring return technology with a normally closed fail-safe position, ensuring that your system defaults to a safe state in the event of a power interruption. Its high-temperature rating makes it well-suited for use in hot water, steam, and other elevated-temperature valve and damper applications.
Key Features
- Two-position (open/close) control for straightforward on/off valve or damper actuation
- Spring return mechanism provides automatic fail-safe return to the normally closed position upon power loss
- Rated for 240VAC operation, compatible with standard commercial and light industrial control circuits
- High-temperature rating for use in demanding heating, steam, and hot water system environments
- 18″ pre-attached wire leads for easy field wiring and installation
- Compact, robust motor actuator construction for long service life
- Designed for use with Erie zone valves and compatible valve bodies in hydronic and HVAC systems
Specifications
- Brand: Schneider Electric (Erie)
- Model / SKU: AG14U020
- Voltage: 240VAC
- Control Type: Two Position
- Return Type: Spring Return
- Fail-Safe Position: Normally Closed (NC)
- Temperature Rating: High Temperature
- Wire Leads: 18 inches
Typical Applications
- Hydronic heating and cooling systems
- Hot water and steam zone valve control
- Fan coil unit valve actuation
- Building automation and HVAC control systems requiring fail-safe normally closed operation
- Commercial and light industrial HVAC installations
