Description

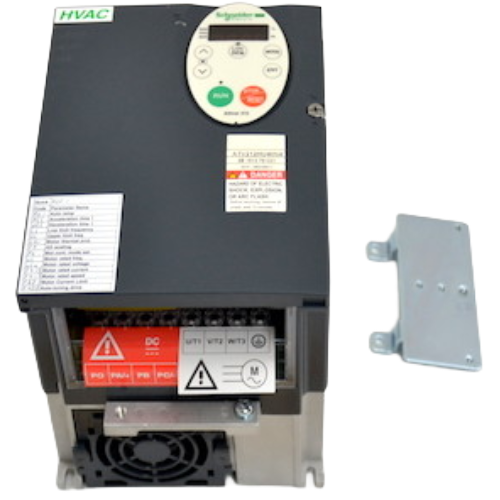

The Schneider Electric ATV212HU40N4 is a 5 horsepower ALTIVAR 212 series Variable Frequency Drive (VFD) engineered for demanding HVAC and building automation applications. Designed to operate on 400/480V three-phase power, this drive delivers precise motor speed control for fans, pumps, and air handling units — helping to maximize energy efficiency and extend equipment life.
Product Overview
The ALTIVAR 212 series is Schneider Electric’s purpose-built VFD line for HVAC applications. The ATV212HU40N4 combines robust construction with advanced motor control algorithms to deliver smooth, reliable performance in commercial and industrial environments. Its compact design simplifies panel integration while its intuitive interface streamlines commissioning and diagnostics.
Key Features
- 5 HP (4.0 kW) motor drive capacity
- Input voltage: 400/480V three-phase
- ALTIVAR 212 series — purpose-designed for HVAC fan and pump applications
- Variable torque control optimized for centrifugal loads
- Built-in EMC filter for reduced electrical noise
- Integrated PID controller for closed-loop process control
- Multiple communication-ready design for building automation system integration
- Automatic energy optimization function reduces power consumption at partial loads
- Comprehensive motor protection: overload, overvoltage, undervoltage, and short-circuit
- Compact, panel-mount enclosure design
HVAC Application Benefits
- Ideal for variable air volume (VAV) systems, supply and return fans, and hydronic pumps
- Soft-start capability reduces mechanical stress and extends motor and belt life
- Energy savings through precise speed matching to actual system demand
- Reduces peak demand charges by eliminating across-the-line motor starts
- Supports Building Automation System (BAS) integration
Specifications
- SKU / Part Number: ATV212HU40N4
- Brand: Schneider Electric (Square D)
- Series: ALTIVAR 212
- Horsepower: 5 HP
- Input Voltage: 400/480V AC, Three-Phase
- Drive Type: Variable Frequency Drive (VFD)
- Load Type: Variable Torque (HVAC/Fan/Pump)
Order the Schneider Electric ATV212HU40N4 from Jackson Systems today and take advantage of our knowledgeable HVAC technical support team and fast order fulfillment.
