Description

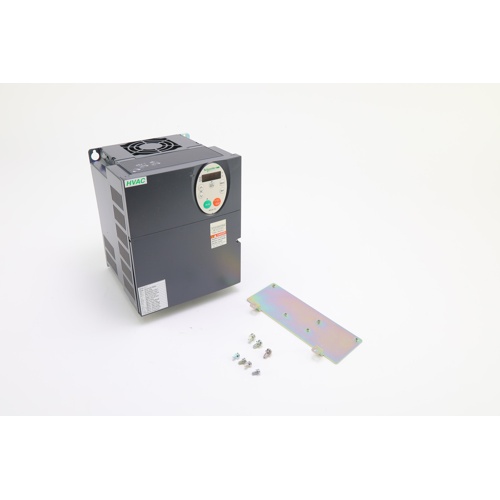

The Schneider Electric (Square D) ATV212HU75N4 is a 10 horsepower, three-phase Variable Frequency Drive engineered for demanding HVAC, pump, and fan applications. Part of the trusted Altivar 212 series, this drive delivers precise motor speed control, energy savings, and extended equipment life — making it an ideal solution for commercial and industrial HVAC systems.
Key Features
- 10 HP (7.5 kW) rated output power
- Input voltage: 380/480VAC, 3-phase
- Designed for HVAC pump, fan, and compressor motor control
- Part of the Altivar 212 series — purpose-built for HVAC applications
- Smooth motor acceleration and deceleration for reduced mechanical stress
- Energy-saving variable torque control for fan and pump loads
- Built-in EMC filter for reduced electrical interference
- Integrated PID controller for closed-loop process control
- Multiple communication protocol compatibility
- Compact, panel-mount design for easy installation
Application
The ATV212HU75N4 is optimized for variable torque loads commonly found in HVAC systems, including supply and return fans, cooling tower fans, chilled water pumps, condenser water pumps, and air handling units. By matching motor speed to actual system demand, this VFD significantly reduces energy consumption compared to fixed-speed operation.
Why Choose the Altivar 212?
Schneider Electric’s Altivar 212 series is specifically designed with HVAC professionals in mind. The drive’s intuitive interface, robust protection features, and compatibility with building automation systems make commissioning and integration straightforward. Its rugged construction ensures reliable performance in the challenging environments typical of mechanical rooms and rooftop installations.
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: ATV212HU75N4
- Horsepower: 10 HP
- Input Voltage: 380/480VAC
- Phase: 3-Phase
- Drive Series: Altivar 212
- Application: HVAC Fans, Pumps, Compressors
