Description

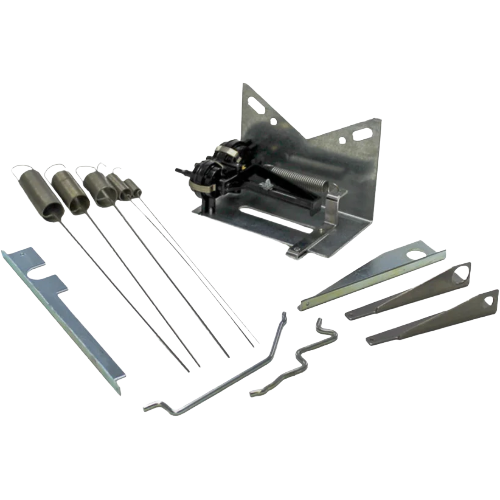

The Schneider Electric (Barber Colman) AK-42309-500 is a direct-acting positive positioning relay designed to provide precise, repeatable positioning of pneumatic actuators in commercial HVAC and building automation systems. Supplied with mounting linkage for straightforward field installation, this relay is factory set with a 5 lb (5#) span, ensuring accurate signal-to-stroke response right out of the box.
Positive positioning relays are essential in pneumatic control systems where accurate actuator positioning is critical — eliminating the effects of friction, hysteresis, and varying supply pressures to deliver consistent, reliable control of dampers, valves, and other pneumatically operated devices.
Key Features
- Direct-acting operation for straightforward signal-to-output response
- Factory set span at 5 psi (5#) for immediate deployment
- Includes mounting linkage for simplified installation on compatible actuators
- Compensates for actuator friction, hysteresis, and supply pressure variations
- Ensures accurate and repeatable actuator positioning
- Designed for use in commercial HVAC pneumatic control systems
- Built to Schneider Electric (Barber Colman) quality standards
Typical Applications
- Pneumatic damper actuator positioning
- Pneumatic valve actuator control
- Building automation and commercial HVAC systems
- Air handling unit control loops requiring precise positioning
Product Specifications
- SKU: AK-42309-500
- Brand: Schneider Electric (Barber Colman)
- Action: Direct Acting
- Factory Set Span: 5# (5 psi)
- Includes: Mounting Linkage
