Description

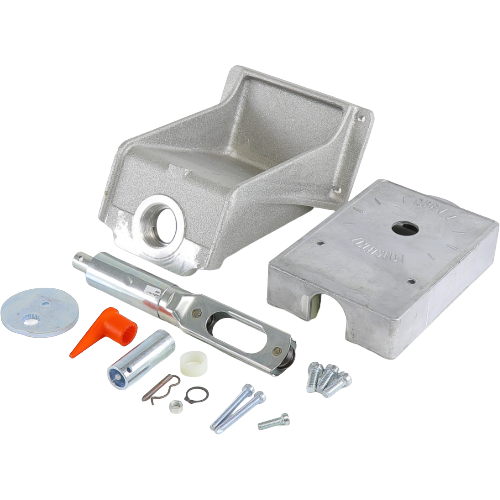

The Schneider Electric (Barber Colman) AV-392 is a complete valve linkage kit engineered to connect gear train actuators to compatible control valves in commercial HVAC and building automation applications. Designed for reliable, precise valve positioning, this linkage kit delivers the mechanical interface needed for consistent actuator-to-valve performance in demanding hydronic and steam systems.
Key Features
- Complete linkage kit — includes all hardware needed for a full installation
- 150 lb stem force rating for robust, positive valve actuation
- Compatible with 1½” and 2″ VB-9xxx Series valves from Schneider Electric (Barber Colman)
- Designed specifically for use with gear train actuators
- Engineered for dependable, repeatable performance in commercial HVAC systems
- Simplifies field installation with matched components from a single manufacturer
Application
The AV-392 linkage kit is the correct replacement or new-installation solution when pairing a gear train actuator with 1½” or 2″ VB-9xxx Series two-way or three-way control valves. It is commonly used in hydronic heating and cooling systems, air handling units, fan coil units, and other commercial building mechanical systems where precise flow control is required.
Specifications
- SKU: AV-392
- Brand: Schneider Electric (Barber Colman)
- Stem Force: 150 lb
- Compatible Valve Series: VB-9xxx (1½” and 2″ sizes)
- Kit Type: Complete Linkage Kit
- Actuator Type Compatibility: Gear Train Actuators
