Description

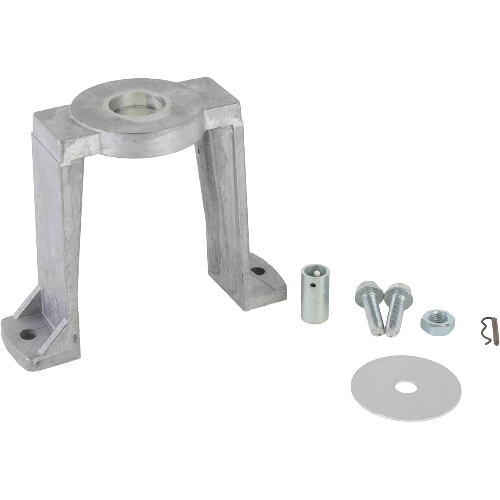

The Schneider Electric (Barber Colman) AV-495 is a precision-engineered pneumatic actuator linkage kit designed to mechanically couple select Schneider Electric pneumatic actuators to compatible VB-series globe valves in commercial HVAC and building automation applications. This linkage kit provides a reliable, factory-matched mechanical interface that ensures accurate valve positioning and consistent control performance in pneumatic systems.
Compatible Actuators
- MK-68X1 Series Pneumatic Actuators
- MS-8XX1X-XXX Series Pneumatic Actuators
- MSR-8801X Series Pneumatic Actuators
- MSR-8601X Series Pneumatic Actuators
- MSR-8701X Series Pneumatic Actuators
Compatible Valves
- VB-9213 Globe Valves
- VB-9223 Globe Valves
- VB-9313 Globe Valves
- Valve sizes: 2½” – 4″
Key Features
- Factory-matched linkage for precise actuator-to-valve mechanical coupling
- Designed specifically for Schneider Electric (Barber Colman) pneumatic control systems
- Supports accurate valve stem positioning for reliable flow control
- Suitable for commercial HVAC, hydronic, and building automation system applications
- Ensures proper force transmission between actuator and valve for dependable operation
- Simplifies field installation with a purpose-built, drop-in compatible design
Application
The AV-495 linkage kit is ideal for use in commercial building HVAC systems where pneumatic control is employed for heating, cooling, and process fluid management. By providing a secure and properly dimensioned mechanical connection between the actuator and valve, this kit helps maintain system accuracy and extends the service life of both the actuator and valve assembly. Always verify actuator and valve model compatibility before installation.
