Description

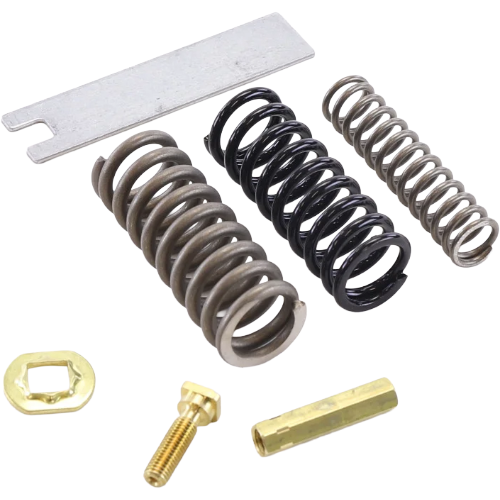

The Schneider Electric (Barber Colman) AV-7600 is a precision-engineered hydraulic actuator valve linkage kit designed to mechanically couple compatible pneumatic and hydraulic actuators to the VB-7xxx series of control valves. It provides a reliable, secure connection that ensures accurate valve positioning and consistent flow control in commercial HVAC hydronic and pneumatic systems.
Compatible Actuators
- MA-521x Series
- MF-5×13 Series
- MP-521x Series
- MP-541x Series
- MP-551x Series
- MPR-561x Series
- MPR-571x Series
Compatible Valve Series
- VB-7xxx Series valves in 1/2″ through 2″ pipe sizes
Key Features
- Designed specifically for use with Schneider Electric (Barber Colman) hydraulic and pneumatic actuators
- Ensures precise mechanical linkage between actuator and valve body
- Supports accurate valve stroke and positioning for reliable flow modulation
- Engineered for commercial HVAC hydronic heating and cooling applications
- Simplifies actuator-to-valve assembly and field installation
- Compatible with a broad range of actuator models for flexible system design
Application
The AV-7600 linkage kit is ideal for commercial building automation and HVAC control applications where pneumatic or hydraulic actuators must be precisely coupled to two-way or three-way modulating control valves. It is a critical component for maintaining system integrity and ensuring proper valve actuation in air handling units, fan coil units, and hydronic distribution systems.
