Description

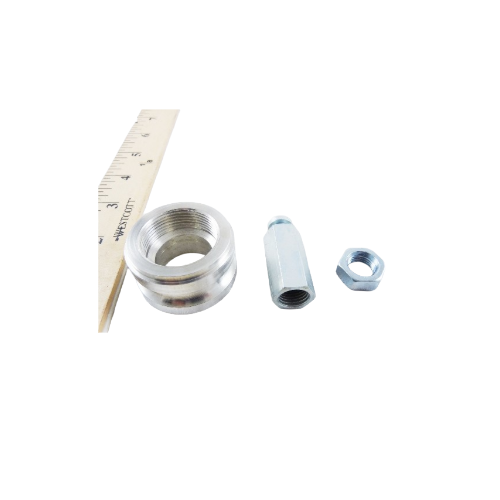

The Schneider Electric (Barber Colman) AV-822 is a precision-engineered adapter kit designed to simplify actuator-to-valve mounting in commercial HVAC control applications. This versatile kit bridges the gap between multiple Forta actuator models and a wide range of VB-8xxx and VB-9xxx series valves, eliminating the need for custom fabrication and ensuring a secure, reliable mechanical connection.
Compatible Actuators
- Forta M1500 U-bolt style actuators — compatible with 2½” to 6″ VB-8xxx and VB-9xxx series valves
- Forta M800A actuator — compatible with 2½” to 4″ VB-9xxx series valves
- Forta M900Ax actuator — compatible with 2½” to 4″ VB-8xxx and VB-9xxx series valves
Compatible Valve Series
- VB-8xxx series valves (2½” – 6″ for M1500; 2½” – 4″ for M900Ax)
- VB-9xxx series valves (2½” – 6″ for M1500; 2½” – 4″ for M800A and M900Ax)
Key Features & Benefits
- Enables direct mounting of U-bolt style Forta actuators to large-body commercial valves
- Supports multiple actuator models with a single adapter kit for flexible inventory management
- Engineered for secure mechanical coupling, reducing installation time and labor costs
- Manufactured to Schneider Electric (Barber Colman) quality standards for long-term reliability
- Ideal for commercial building automation and hydronic control systems
Applications
The AV-822 adapter kit is well-suited for commercial HVAC installations requiring precise valve actuation in air handling units, fan coil systems, and hydronic heating and cooling circuits. It is the recommended mounting solution when pairing Forta series actuators with VB-8xxx and VB-9xxx two-way and three-way control valves in building automation environments.
