Description

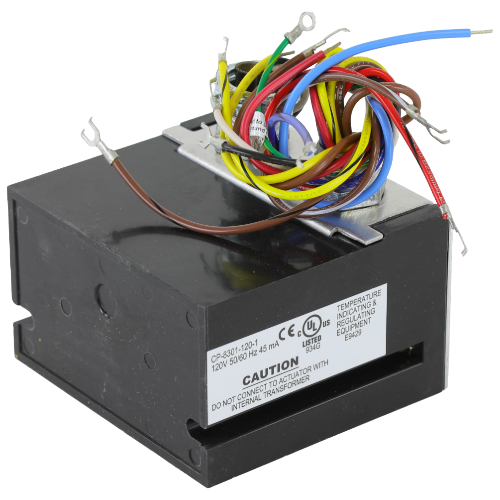

The Schneider Electric (Barber Colman) CP-8301-120 is a precision Electronic Actuator Drive engineered for demanding commercial HVAC and building automation applications. Designed to accept a 1 to 15 Vdc control input signal, this drive provides reliable, repeatable actuation performance across a wide range of valve and damper control scenarios.
Power & Signal Specifications
- Control Input: 1 to 15 Vdc
- Power Requirement: 120V AC
- Onboard Regulated & Filtered Power Supply: 20 Vdc at 50 mA
- Adjustable Input Setpoint: 2 to 12 Vdc (factory set at 6 Vdc)
- Fixed Span: 3 Vdc for full actuation travel
Key Features
- Adjustable input setpoint allows flexible field calibration to match system requirements
- Factory-preset at 6 Vdc for quick out-of-the-box commissioning
- 3 Vdc fixed span ensures consistent, predictable full-stroke actuation
- Regulated and filtered 20 Vdc / 50 mA onboard power supply for clean signal integrity
- 120V AC power input suits standard commercial electrical infrastructure
- Compatible with Barber Colman / Schneider Electric actuator systems
Applications
- Commercial HVAC valve and damper actuator control
- Building automation and energy management systems
- Air handling units, VAV systems, and hydronic control loops
- Retrofit and replacement for existing Barber Colman actuator drive installations
Why Choose the CP-8301-120?
The CP-8301-120 combines the trusted Barber Colman engineering heritage with Schneider Electric’s commitment to building automation excellence. Its field-adjustable input range and factory-set defaults minimize commissioning time, while the onboard regulated power supply reduces external component requirements. Whether upgrading an existing system or specifying a new installation, the CP-8301-120 delivers dependable, precise actuator drive performance.
