Description

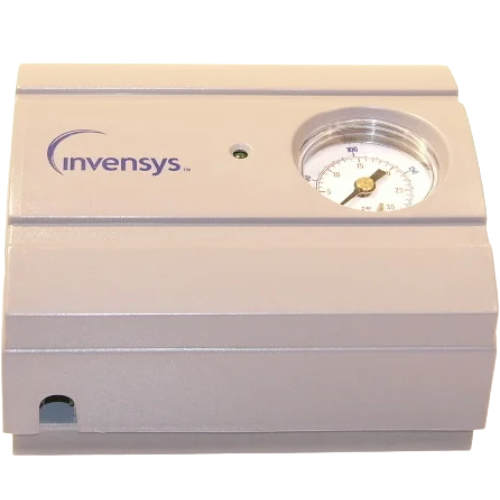

The Schneider Electric (Barber Colman) CP-8511-024 is a professional-grade Electronic to Pneumatic (E/P) Transducer engineered for precise signal conversion in commercial and industrial HVAC building automation systems. It accepts an electronic control signal and converts it to a proportional pneumatic output, enabling reliable communication between electronic controllers and pneumatic actuators or valves.
Key Features
- Electronic to pneumatic signal conversion for seamless integration between electronic and pneumatic control systems
- 24V operating voltage for compatibility with standard commercial HVAC control circuits
- Field selectable input range for flexible installation and commissioning without additional hardware
- 3 to 15 PSIG output range — the industry-standard pneumatic control signal range
- Selectable direct acting or reverse acting operation to suit a wide variety of control applications
- 20 PSIG nominal supply air pressure required for consistent, stable output performance
- 30 PSIG maximum supply air pressure rating for safe operation within pneumatic system limits
Technical Specifications
- Model: CP-8511-024
- Brand: Schneider Electric (Barber Colman)
- Supply Voltage: 24V
- Input Range: Field Selectable
- Output Range: 3 to 15 PSIG
- Acting Mode: Direct Acting or Reverse Acting (field selectable)
- Nominal Supply Air Pressure: 20 PSIG
- Maximum Supply Air Pressure: 30 PSIG
Applications
- Commercial HVAC building automation and control systems
- Pneumatic valve and damper actuator control
- Interfacing DDC/electronic controllers with legacy or existing pneumatic equipment
- VAV systems, air handling units, and hydronic system control
The CP-8511-024 is an ideal solution for facilities managers, controls contractors, and HVAC technicians looking to bridge electronic control signals with pneumatic field devices. Its field-selectable input range and acting mode reduce the need for stocking multiple SKUs, simplifying inventory and installation.
