Description

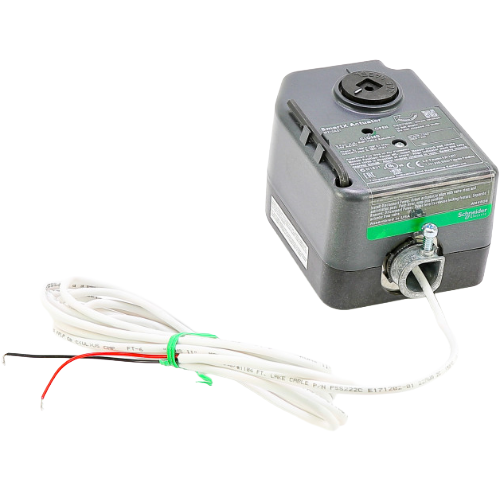

Schneider Electric (Barber Colman) M210A01 Ball Valve Actuator Overview
The Schneider Electric (Barber Colman) M210A01 is a two-position, normally open ball valve actuator engineered for reliable on/off control in commercial HVAC and building automation systems. Designed to deliver consistent performance, this actuator features spring return action that automatically returns the valve to its normally open position upon power loss — a critical safety and system-protection feature for hydronic and water-based HVAC applications.
Key Features
- Two-position (on/off) control for straightforward zone valve operation
- Normally open spring return action — valve returns to open position on power loss
- 24V operating voltage for compatibility with standard commercial control systems
- 50-second powered stroke timing for smooth, controlled valve actuation
- 35-second spring return timing for fast, reliable failsafe response
- Includes 10-foot plenum-rated cable for safe installation in air-handling plenums and above-ceiling environments
- Designed for use with compatible Schneider Electric (Barber Colman) ball valve bodies
Specifications
- SKU: M210A01
- Brand: Schneider Electric (Barber Colman)
- Actuator Type: Two-Position Ball Valve Actuator
- Fail-Safe Action: Normally Open Spring Return
- Supply Voltage: 24V
- Stroke Timing: 50 Seconds
- Spring Return Timing: 35 Seconds
- Cable: 10 ft. Plenum-Rated
Application
Ideal for commercial HVAC hydronic systems, fan coil units, air handling units, and building automation applications where two-position valve control and failsafe normally open operation are required. The plenum-rated cable ensures compliance with fire and safety codes when routing through air plenums.
