Description

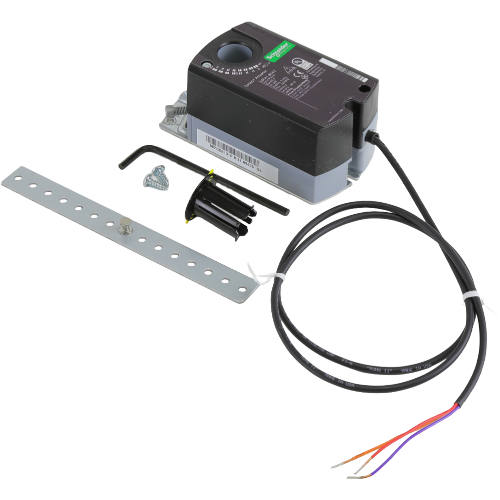

The Schneider Electric (Barber Colman) MF41-6043 is a 24-volt floating control, non-spring return (NSR) damper actuator engineered for dependable performance in commercial and light industrial HVAC applications. Delivering 35 lb-in of torque, this actuator provides the driving force needed to position dampers accurately and hold position reliably without the aid of a return spring.
Key Features
- 24V AC/DC floating control signal for precise two-directional positioning
- 35 lb-in torque output for robust damper actuation
- Non-spring return (NSR) design — damper holds last position on power loss
- Compact, direct-coupled design for straightforward installation
- Compatible with standard HVAC damper shafts and linkage assemblies
- Suitable for use in ventilation, economizer, and zone control damper applications
Application
The MF41-6043 is ideal for use in commercial HVAC systems where precise damper positioning and reliable zone control are required. The floating control input allows the actuator to be driven open or closed by a simple three-wire signal from a controller or thermostat, making integration into building automation and zone control systems straightforward.
Specifications
- Brand: Schneider Electric (Barber Colman)
- Model / SKU: MF41-6043
- Control Type: Floating (Three-Point)
- Supply Voltage: 24V
- Torque: 35 lb-in
- Return Type: Non-Spring Return (NSR)
- Application: Damper Actuator
