Description

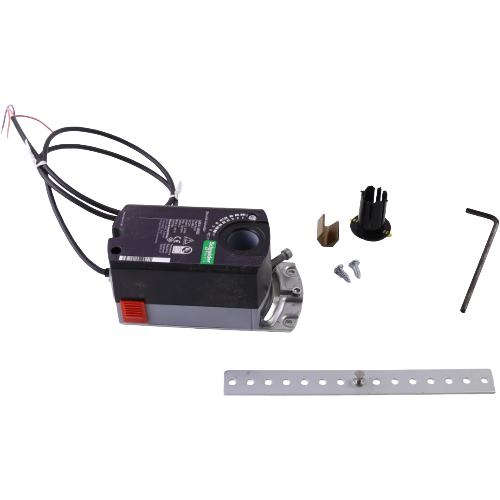

The Schneider Electric (Barber Colman) MF41-6083 is a reliable, commercial-grade damper actuator engineered for precise airflow control in HVAC and building automation applications. Designed for direct mount installation, this actuator eliminates the need for additional linkage hardware, simplifying installation and reducing potential points of failure.
Key Features
- 24V control voltage for compatibility with standard building automation and HVAC control systems
- Floating control signal for accurate, stable positioning across a wide range of damper applications
- 70 in-lb torque output to reliably drive medium to large dampers under typical duct static pressures
- Non-Spring Return (NSR) design — damper holds its last position on power loss, ideal for applications where fail-in-place operation is required
- Direct mount configuration for fast, tool-friendly installation directly onto damper shafts without external linkage
- Compact, rugged construction suited for commercial and light industrial HVAC environments
Typical Applications
- VAV and constant volume air handling units
- Mixing, outside air, and return air dampers
- Building automation and energy management systems
- Commercial HVAC zoning and ventilation control
Product Specifications
- Brand: Schneider Electric (Barber Colman)
- SKU: MF41-6083
- Control Voltage: 24V
- Control Signal: Floating (Three-Point)
- Torque: 70 in-lb
- Return Type: Non-Spring Return (NSR)
- Mounting: Direct Mount
The MF41-6083 is part of Schneider Electric’s trusted Barber Colman actuator series, known for long service life and consistent performance in demanding commercial HVAC environments. Order from Jackson Systems for fast shipping and expert support.
