Description
Overview

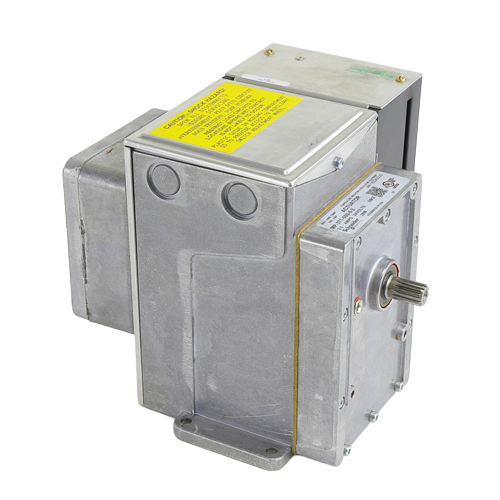

The Schneider Electric (Barber Colman) MP-371-600 is a high-performance proportional actuator engineered for precise damper and valve control in commercial HVAC and building automation systems. Operating on 24V power with a 1 to 15 Vdc input drive signal, this actuator delivers accurate, modulating control to keep your system running at peak efficiency.
Key Features
- 24V operating voltage for compatibility with standard commercial control systems
- 50 lb-in torque output for reliable actuation of dampers and valves
- 90-second timing (no load) for smooth, controlled movement
- Spring return counter clockwise (CCW) fail-safe operation ensures safe positioning on power loss
- SPDT auxiliary switch for end-of-travel signaling and auxiliary control functions
- 180-degree rotation for wide-range damper and valve positioning
- 1 to 15 Vdc proportional input drive for seamless integration with building automation controllers
Applications
- Commercial HVAC damper control
- VAV and air handling unit applications
- Building automation and energy management systems
- Zone control and economizer systems
Specifications
- Brand: Schneider Electric (Barber Colman)
- Model / SKU: MP-371-600
- Supply Voltage: 24V
- Torque: 50 lb-in
- Timing (No Load): 90 seconds
- Fail-Safe Action: Spring Return Counter Clockwise (CCW)
- Auxiliary Switch: SPDT
- Rotation: 180 degrees
- Input Signal: 1 to 15 Vdc proportional
