Description

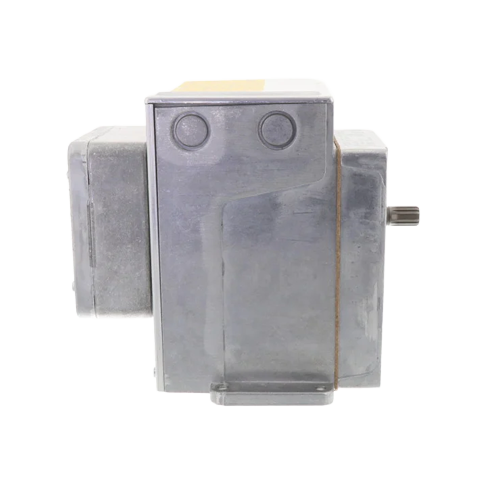

The Schneider Electric (Barber Colman) MP-465 is a robust proportional actuator engineered for precise damper and valve control in commercial HVAC and building automation applications. With a built-in transformer, SPDT auxiliary switch, and reliable spring-return operation, this actuator delivers dependable performance in demanding environments.
Key Features
- 120V operating voltage with built-in transformer for simplified wiring
- 50 lb-in torque output for reliable damper and valve actuation
- 90-second timing (no load) for smooth, controlled positioning
- Spring return clockwise (CW) failsafe operation for added system safety
- SPDT auxiliary switch for end-of-travel signaling and interlock control
- 180-degree rotation for versatile damper and valve compatibility
- Proportional control for accurate, modulating positioning response
Applications
- Commercial HVAC damper actuation
- Building automation and control systems
- Air handling unit (AHU) control
- Valve and damper modulation in VAV and constant-volume systems
Specifications
- SKU: MP-465
- Brand: Schneider Electric (Barber Colman)
- Voltage: 120V
- Torque: 50 lb-in
- Timing (No Load): 90 seconds
- Fail-Safe: Spring Return Clockwise
- Auxiliary Switch: SPDT
- Rotation: 180 Degrees
- Transformer: Built-In
- Control Type: Proportional
